Transporting

Transporters for private use

NTR 340

• Gearbox
  4-speed (2 forward + 2 reverse)
• Load capacity
  350 Kg
• Lift/dump
  manual
• Transmission
  with gears in oil bath
• Clutch
  belt, with automatic disengagement when the control lever is released
• Brakes
  with automatic cut-in when the clutch is released
• Body
  telescoping
• Dump angle
  45°
• Steering
  with independently controlled releases and brakes
• Minimum turning radius
  700 mm
• Power take-off
  no
• Weight
  140 kg
• Dato Scheda Tecnica
  L1:1530-1665|L2:925-1060|H1:965|H2:885|H3:570|H4:240|H5:330|H6:65|W1:590|W2:603-983|W3:170|W4:520-900|P1:690|P2:415-550, 1:1.60|1R:1.40|2:3.60|2R:3.40
• SchedaTecnica
  Transporters

Transporters for intensive use

NTR 450

• Gearbox
  4-speed (3 forward + 1 reverse)
• Load capacity
  450 Kg
• Lift/dump
  manual
• Transmission
  with gears in oil bath
• Clutch
  belt, with automatic disengagement when the control lever is released
• Brakes
  with expansion and automatic cut-in when the clutch is released
• Body
  telescoping
• Dump angle
  50°
• Steering
  with independently controlled releases and brakes
• Minimum turning radius
  700 mm
• Power take-off
  independent at 2100 rpm
• Weight
  180 kg
• Dato Scheda Tecnica
  L1:1670|L2:925-1060|H1:1020|H2:900|H3:590|H4:240|H5:339|H6:70|W1:620|W2:643|W3:-|W4:560-940|P1:785|P2:330, 1:1.88|1R:1.86|2:4.13|3:7.00
• SchedaTecnica
  Transporters

Professional transporters

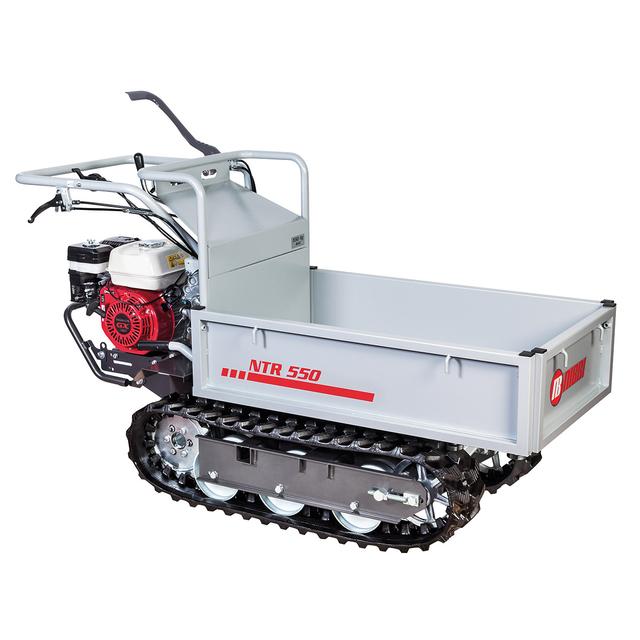

NTR 550

• Gearbox
  6-speed (4 forward + 2 reverse)
• Load capacity
  550 Kg
• Lift/dump
  manual
• Transmission
  with gears in oil bath
• Clutch
  belt, with automatic disengagement when the control lever is released
• Brakes
  with expansion and automatic cut-in when the clutch is released
• Body
  telescoping
• Dump angle
  50°
• Steering
  with independently controlled releases and brakes
• Minimum turning radius
  700 mm
• Power take-off
  independent at 2100 rpm
• Weight
  200 kg
• Dato Scheda Tecnica
  1:1.88|1R:1.86|2:3.16|2R:3.13|3:4.13|4:7.00, L1:1745|L2:1000-1180|H1:1020|H2:900|H3:590|H4:240|H5:339|H6:70|W1:620|W2:733|W3:-|W4:650-1100|P1:785|P2:405
• SchedaTecnica
  Transporters

Professional transporters

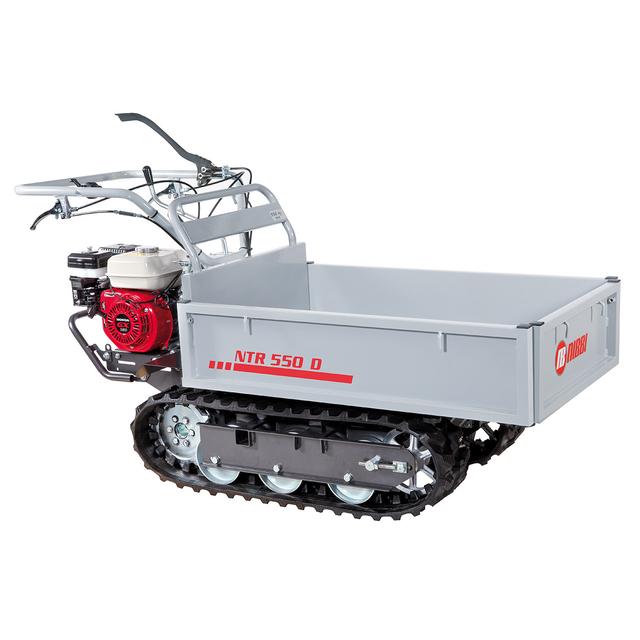

NTR 550 D

• Gearbox
  6-speed (4 forward + 2 reverse)
• Load capacity
  550 Kg
• Lift/dump
  hydraulic
• Transmission
  with gears in oil bath
• Clutch
  belt, with automatic disengagement when the control lever is released
• Brakes
  with expansion and automatic cut-in when the clutch is released
• Body
  telescoping
• Dump angle
  50°
• Steering
  with independently controlled releases and brakes
• Minimum turning radius
  700 mm
• Power take-off
  independent at 2100 rpm
• Weight
  215 kg
• Dato Scheda Tecnica
  1:1.88|1R:1.86|2:3.16|2R:3.13|3:4.13|4:7.00, L1:1745|L2:1000-1180|H1:1020|H2:900|H3:590|H4:240|H5:339|H6:70|W1:620|W2:733|W3:-|W4:650-1100|P1:785|P2:405
• SchedaTecnica
  Transporters

Professional transporters

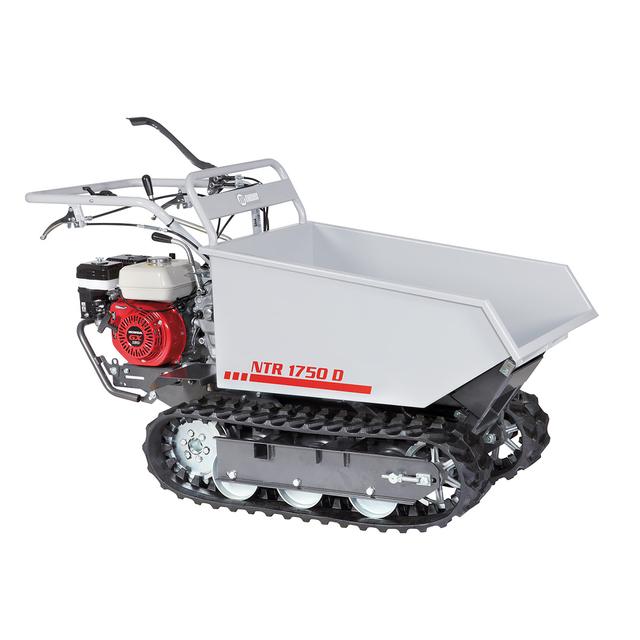

NTR 1750 D

• Gearbox
  6-speed (4 forward + 2 reverse)
• Load capacity
  550 Kg
• Lift/dump
  hydraulic
• Transmission
  with gears in oil bath
• Clutch
  belt, with automatic disengagement when the control lever is released
• Brakes
  with expansion and automatic cut-in when the clutch is released
• Body
  fixed
• Dump angle
  60°
• Steering
  with independently controlled releases and brakes
• Minimum turning radius
  700 mm
• Power take-off
  independent at 2100 rpm
• Weight
  215 kg
• Dato Scheda Tecnica
  L1:1575|L2:915|H1:1020|H2:900|H3:515-725|H4:405|H5:320|H6:70|W1:622|W2:622|W3:-|W4:620|P1:785|P2:265, 1:1.88|1R:1.86|2:3.16|2R:3.13|3:4.13|4:7.00
• SchedaTecnica
  Transporters
