Professional flail mowers

Professional flail mowers

NTS 65

• Gearbox
  4-speed (3 forward + 1 reverse)
• Working width
  65 cm
• Cutting height
  20 - 80 mm, crank adjusted
• Transmission
  with gears in oil bath
• Clutch
  belt with tensioner
• Steering
  with independent steering clutches and wheel lock
• Handlebars
  adjustable in height and on the sides
• Cutting unit
  rotor with 38 "Y" shaped knives
• Service brake
  with automatic cut-in
• Wheels
  Rear wheels: 16/6.50-8'', Front wheels: swivel with lock
• Weight
  173.5 kg
• Dato Scheda Tecnica
  $4-speed (3 forward + 1 reverse) with 16/6.50-8'' wheels$1:1.20|1R:1.40|2:2.20|3:3.40, L1:1657|H1:1092|H2:1216|W1:700|W2:814|W3:670|W4:550
• SchedaTecnica
  Flail Mower
• Dimensioni
  Gearbox / Speed (km/h) with wheels:, Dimensions (mm)

Professional flail mowers

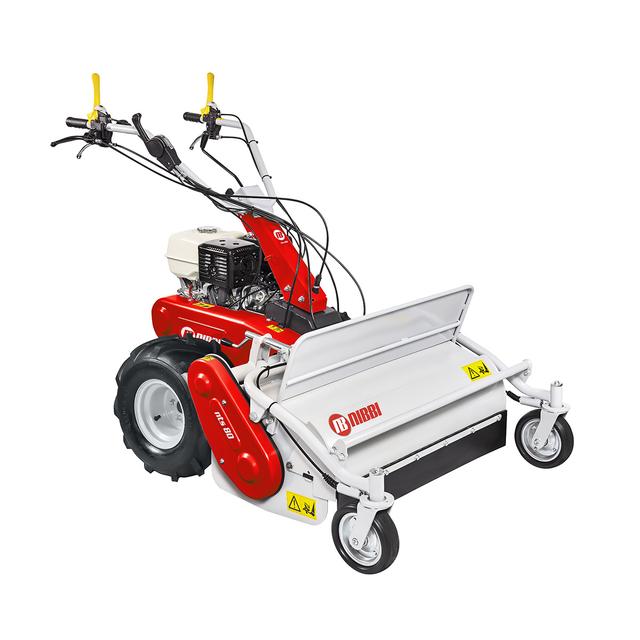

NTS 80

• Gearbox
  4-speed (3 forward + 1 reverse)
• Working width
  80 cm
• Cutting height
  20 - 80 mm, crank adjusted
• Transmission
  with gears in oil bath
• Clutch
  belt with tensioner
• Steering
  with independent steering clutches and wheel lock
• Handlebars
  adjustable in height and on the sides
• Cutting unit
  rotor with 46 "Y" shaped knives
• Service brake
  with automatic cut-in
• Wheels
  Rear wheels: 16/6.50-8'', Front wheels: swivel with lock
• Weight
  175 kg
• Dato Scheda Tecnica
  $4-speed (3 forward + 1 reverse) with 16/6.50-8'' wheels$1:1.20|1R:1.40|2:2.20|3:3.40, L1:1657|H1:1092|H2:1216|W1:850|W2:964|W3:670|W4:550
• SchedaTecnica
  Flail Mower
• Dimensioni
  Gearbox / Speed (km/h) with wheels:, Dimensions (mm)

Professional flail mowers

NTS 100

• Gearbox
  4-speed (3 forward + 1 reverse)
• Cutting height
  20 - 80 mm, crank adjusted
• Transmission
  with gears in oil bath
• Clutch
  belt with tensioner
• Steering
  with independent steering clutches and wheel lock
• Handlebars
  with vertical and horizontal adjustment
• Cutting unit
  rotor with 58 "Y" shaped knives
• Service brake
  with automatic cut-in
• Wheels
  Rear wheels: 18/9.50-8", Front wheels: swivel with lock
• Weight
  203 kg
• Dato Scheda Tecnica
  L1:1500|H1:1200|H2:1380|W1:1140|W2:1240|W3:900|W4:500, $4-speed (3 forward + 1 reverse) with 18/9.50-8'' wheels$1:1.40|1R:1.60|2:2.50|3:3.90
• SchedaTecnica
  Flail Mower
• Dimensioni
  Gearbox / Speed (km/h) with wheels:, Dimensions (mm)

Professional flail mowers

NTS 100 TR

• Gearbox
  4-speed (3 forward + 1 reverse)
• Working width
  100 cm
• Cutting height
  20 - 80 mm, crank adjusted
• Transmission
  with gears in oil bath
• Clutch
  belt with tensioner
• Steering
  with independent steering clutches and wheel lock
• Handlebars
  with vertical and horizontal adjustment
• Cutting unit
  rotor with 58 "Y" shaped knives
• Service brake
  with automatic cut-in
• Wheels
  Front wheels: swivel with lock
• Weight
  245 kg
• Dato Scheda Tecnica
  $4-speed (3 forward + 1 reverse) with tracks$1:1.40|1R:1.60|2:2.50|3:3.90, L1:1500|H1:1200|H2:1380|W1:1140|W2:1240|W3:900|W4:500
• SchedaTecnica
  Flail Mower
