Rotary tillers for intensive use
HOME USER
105 S
HOME USER
| Power supply | Engine | Model | Displacement | Power* | Starting | Code |
|---|---|---|---|---|---|---|
| K 800 HC OHV | 182 cm³ | 5.7 HP | recoil start | 68589011E5 |
* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

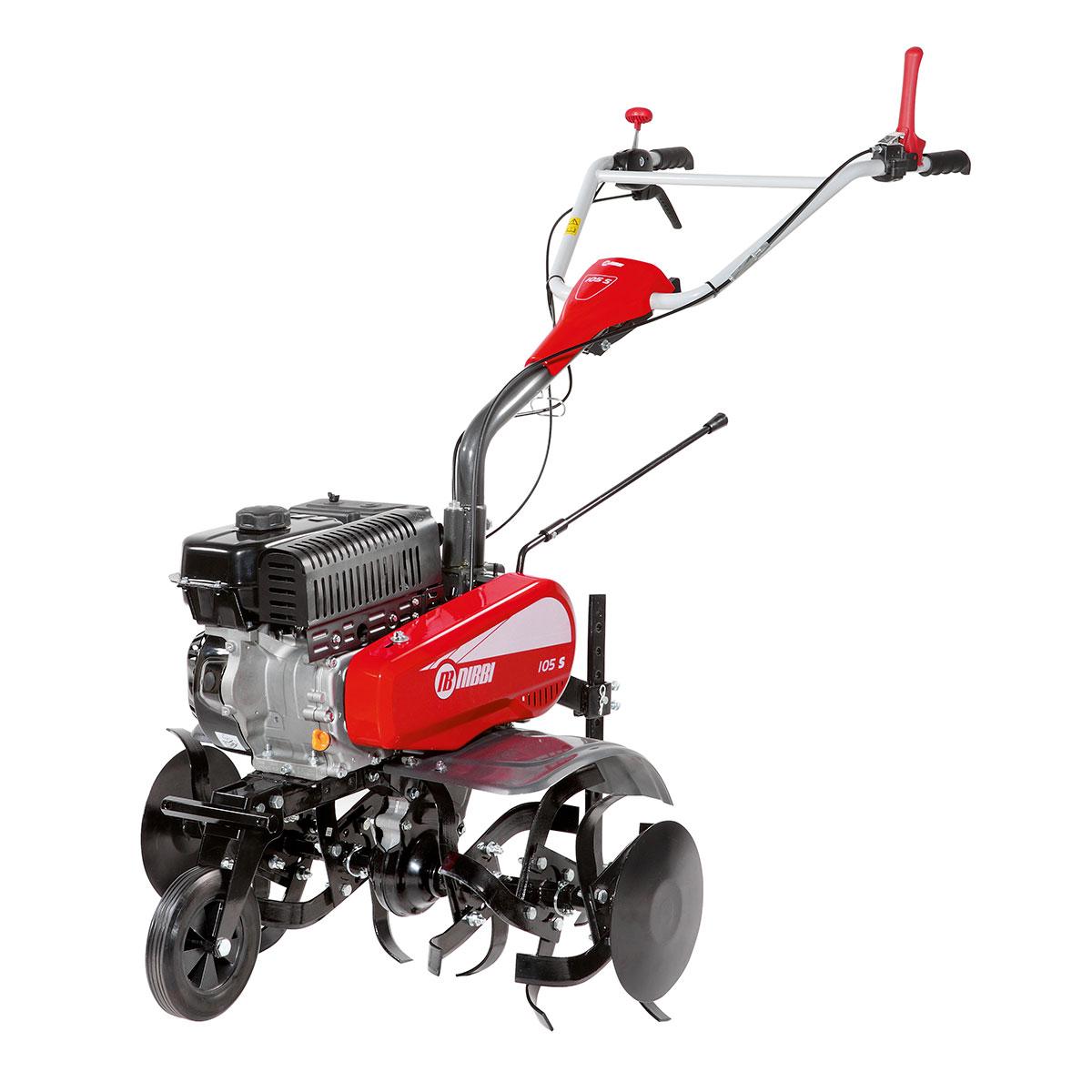

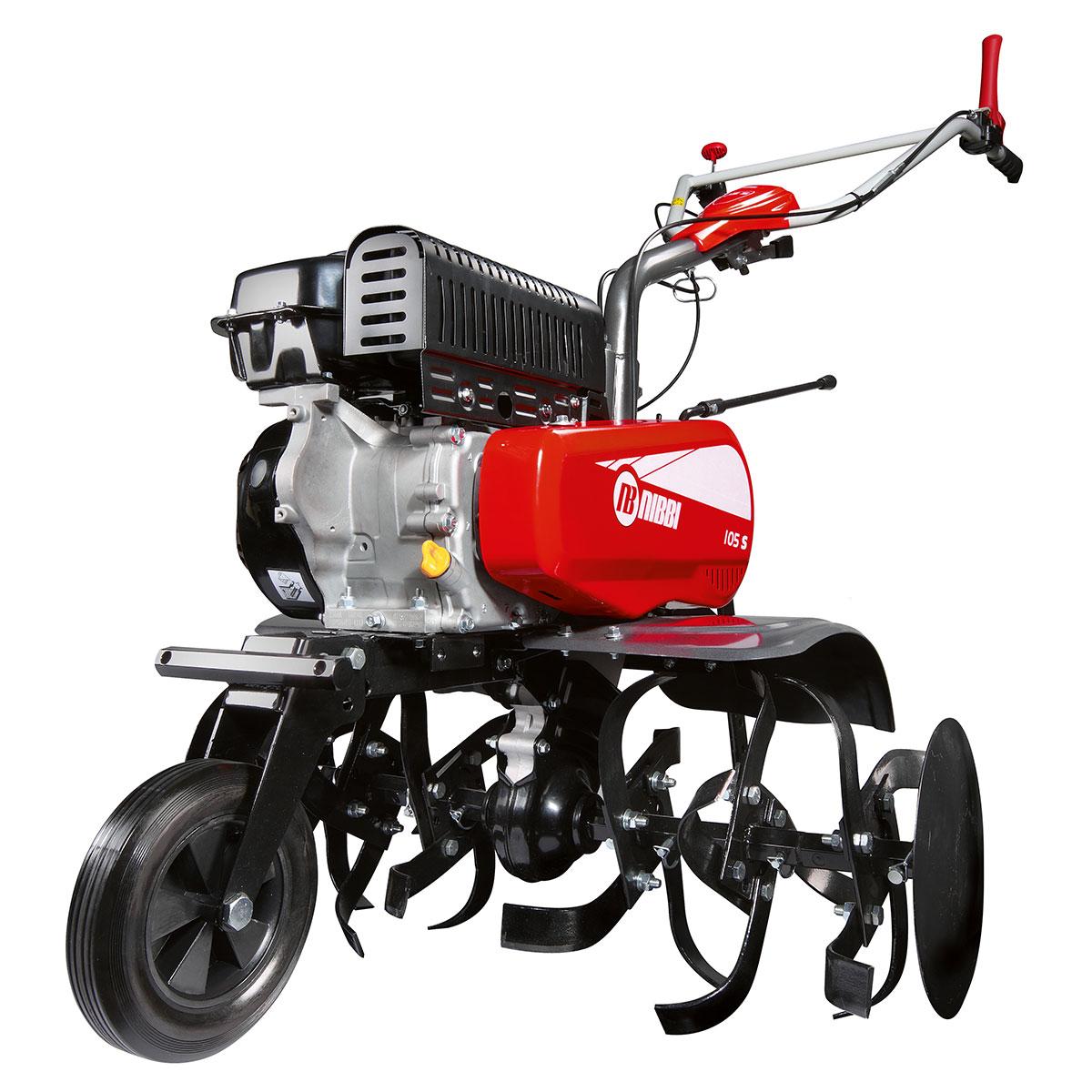

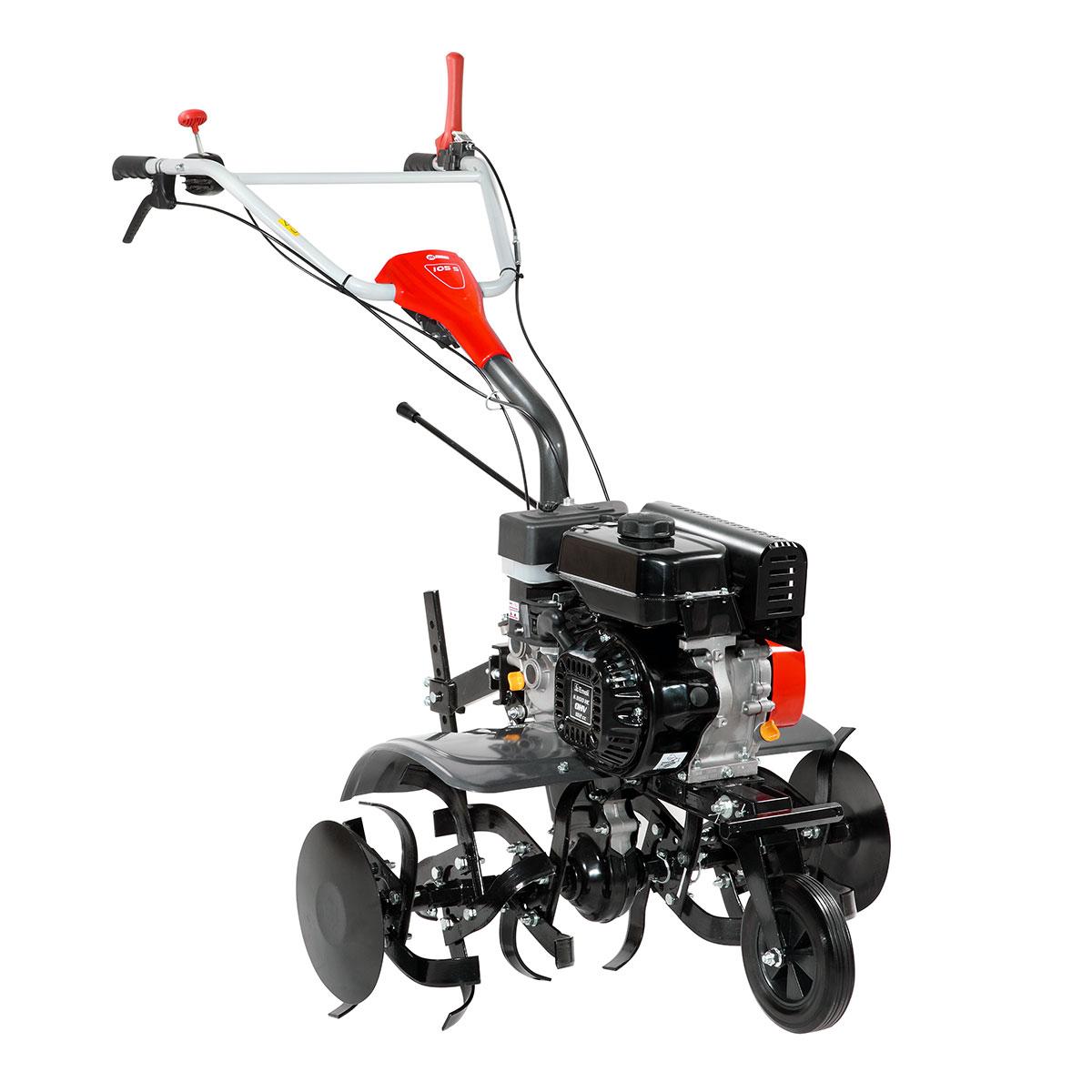

Ideal for demanding home gardeners to prepare the soil for sowing. This model features two forward speeds and one reverse, the perfect combination for the most difficult jobs.
- Gearbox
- 3-speed (2 forward + 1 reverse)
- Transmission
- with oil-bath gearbox and chain
- Clutch
- belt with tensioner

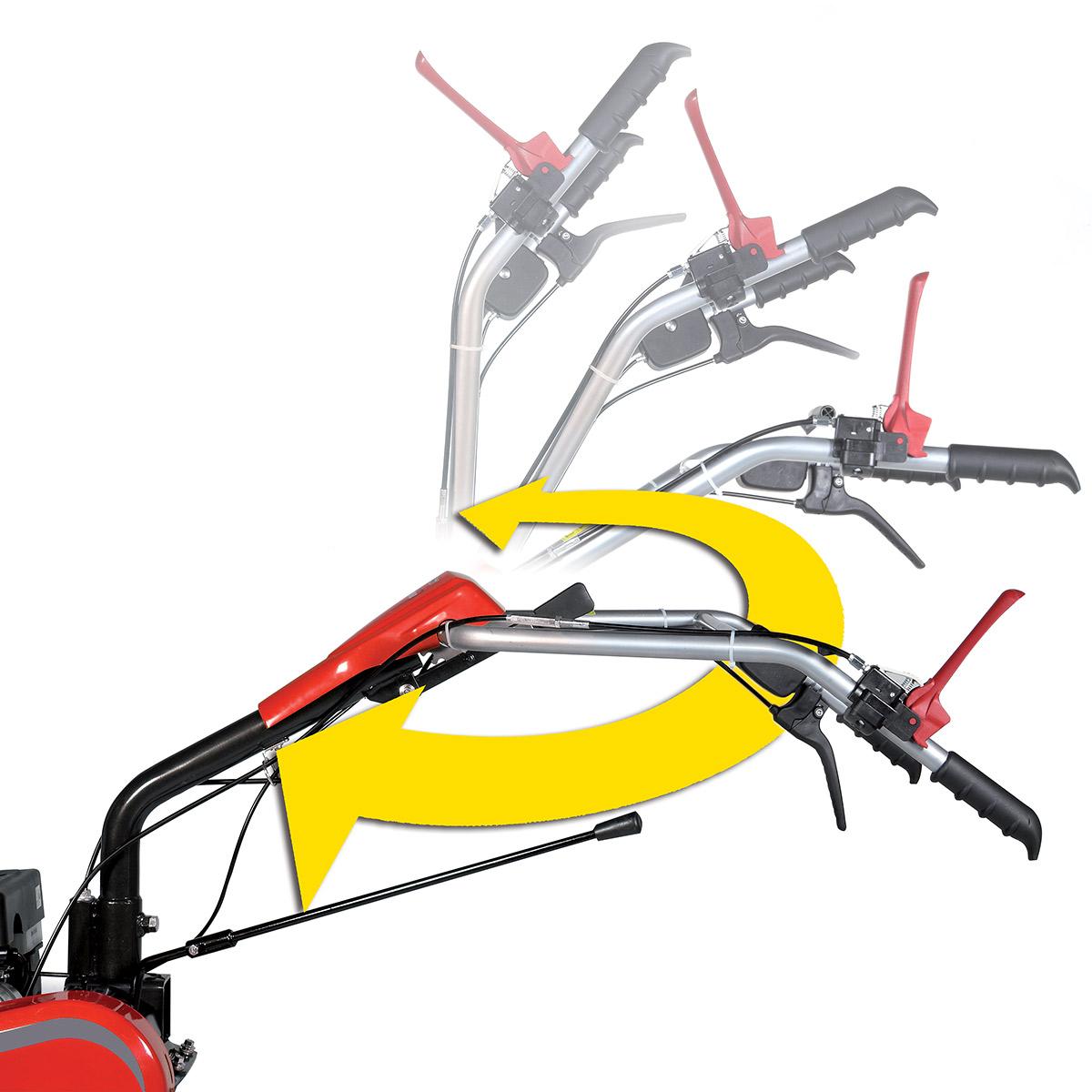

- Handlebars
- with vertical and horizontal adjustment

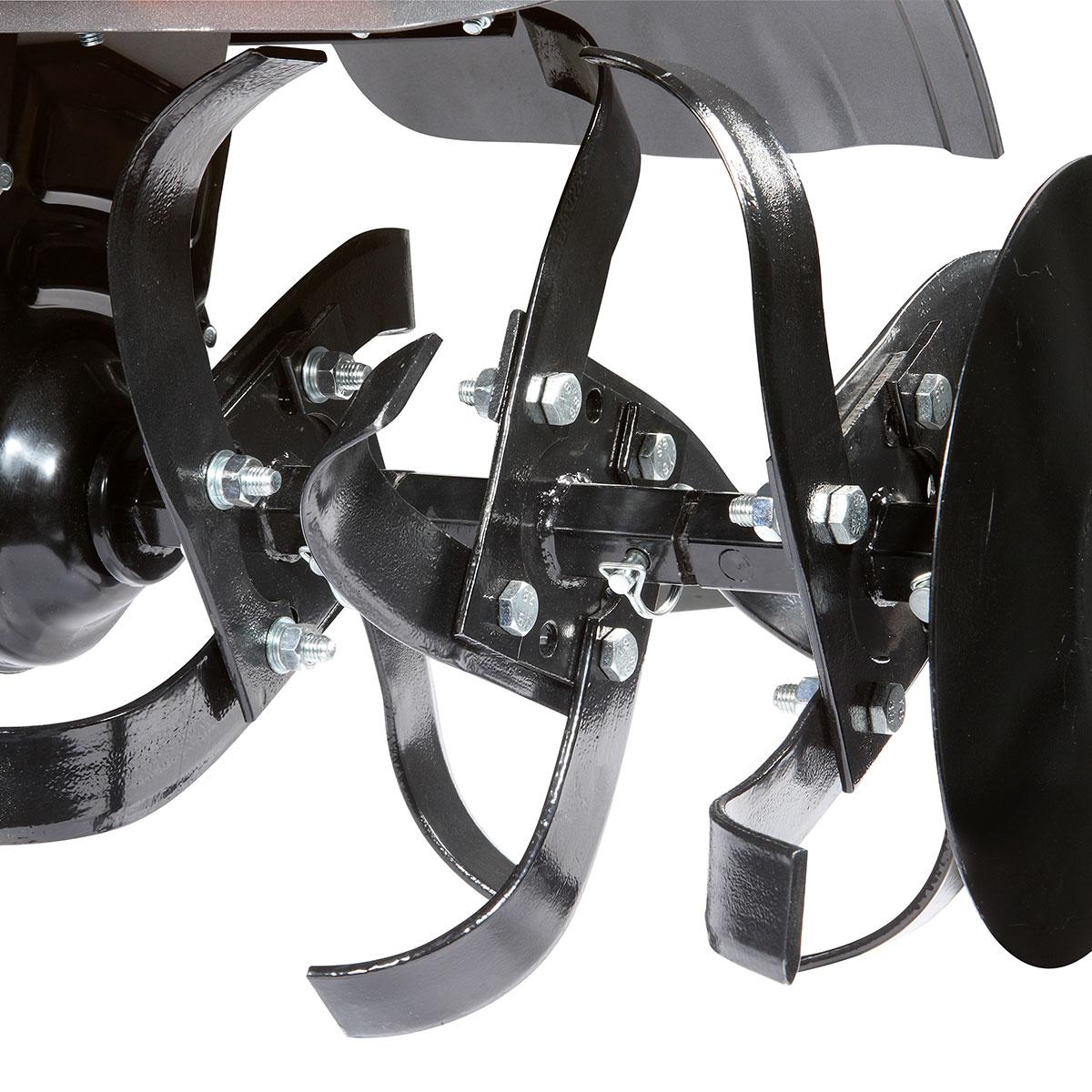

- Rotor
- 85 cm, reducible to 60-35 cm, with side protection discs
- Power take-off
- no

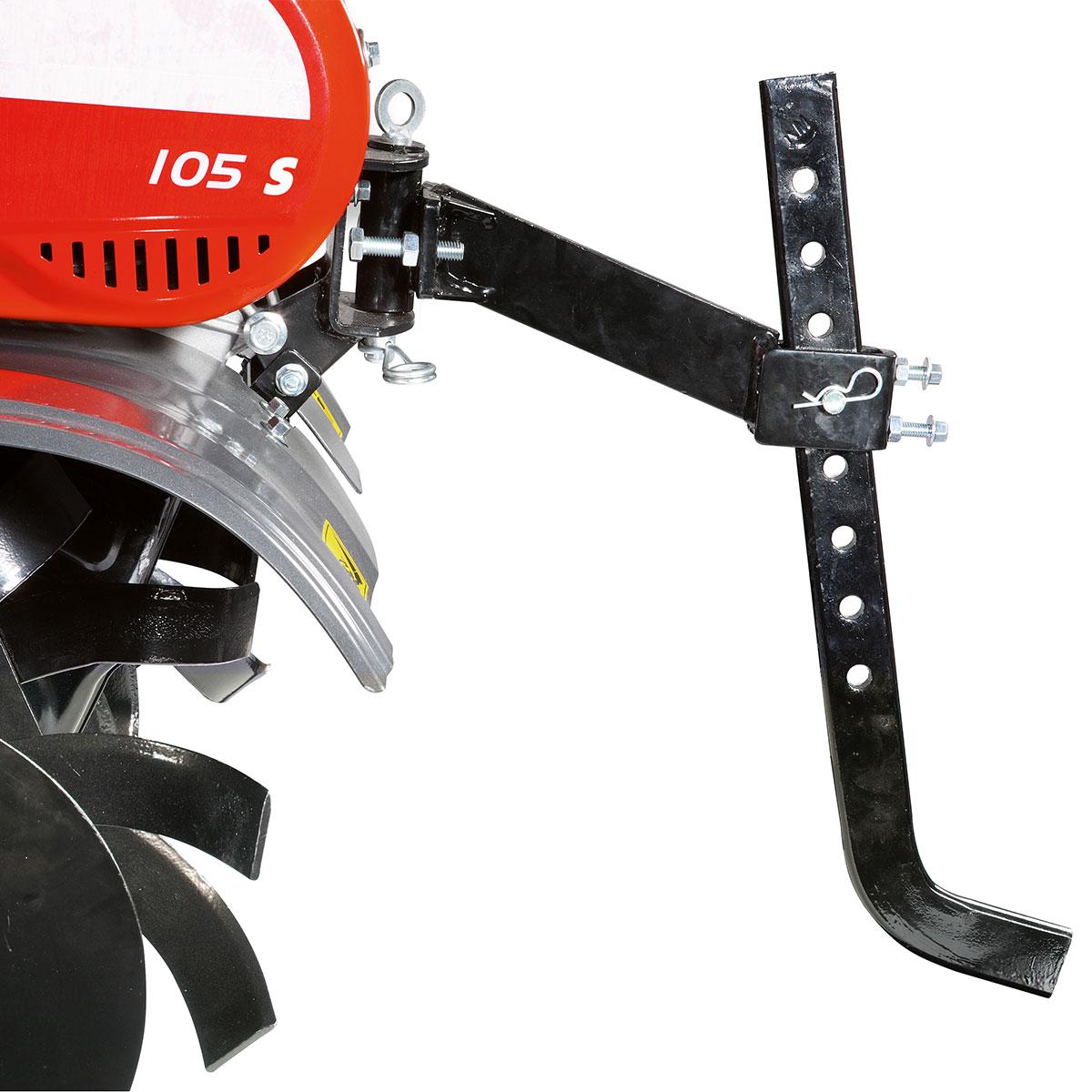

- Spur
- yes, depth adjustable
- Towing hitch
- yes, with integral tool holder
- Front transport wheel
- yes
- Weight
- 63 kg
Rotor speed with engine at 3400 rpm
| 1 | 83 |
| 2 | 114 |
| 1R | 62 |
Dimensions (mm)
| L1 | 1630 |
| H1 | 1050 |
| W1 | 850-600-350 |
Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
