Small/for private use two wheel tractors

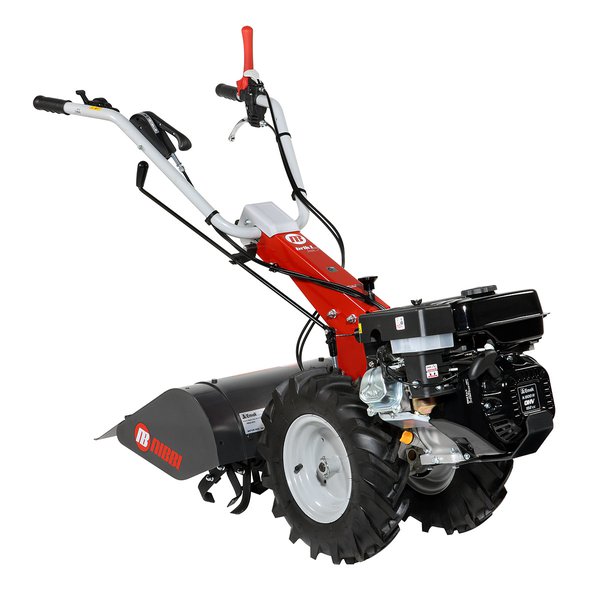

BRIK 1 S

Designed for demanding home gardeners tending an allotment or vegetable plot, this two wheel tractor is extremely functional and offers the optimal combination of ease of use and safety.


  • Displacement 163 cm³ - 182 cm³
  • Gearbox 2-speed (1 forward + 1 reverse)
  • Differential no
Read all the features

Power supply Engine Model Displacement Power* Starting Code
GX 160 OHV 163 cm³ 4.8 HP recoil start 68319103E5
K 800 H OHV 182 cm³ 5.7 HP recoil start 68319105E5


* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

Displacement
163 cm³ - 182 cm³
Gearbox
2-speed (1 forward + 1 reverse)
Differential
no
Reverse gear
no
Transmission
with gears in oil bath
Clutch
dry multidisc
Handlebars
height- and width-adjustable, 180° reversible, with vibration-damping device
Brakes
no
Power take-off
independent at 1004 rpm
Accessories coupling
Integral QuickFit supplied as standard
Towing hitch
optional
Cowling
no
Weight (with diesel engine, rotor and wheels)
75 kg
Home Plus
Home Plus
Gearbox / Speed (km/h):
2-speed (1 forward + 1 reverse) with 4.00-8'' wheels
11.18
1R3.07
Dimensions (mm)
Dimensions (mm)
L11440
L2470
L3970
H1230-1050
W1380
W2350-600
Gearbox / Speed (km/h):
2-speed (1 forward + 1 reverse) with 4.00-8'' wheels
13.07
1R1.18
Dimensions (mm)
Dimensions (mm)
L11465
L2600
L3865
H1345-1150
W1380
W2900-1117

Data and illustrations published are not binding where specifications of materials are concerned, given that these will always be subject to technical improvement. Technical specifications given are subject to change without notice, as also are directions relating to general use of the equipment. Certain items are not available in all countries, or are available only on request.
