Two wheel tractors for private use
CONSUMER
BRIK
CONSUMER
| Power supply | Engine | Model | Displacement | Power* | Starting | Code |
|---|---|---|---|---|---|---|
| K 700 H OHV | 182 cm³ | 5.4 HP | recoil start | 68369002E5 |
* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

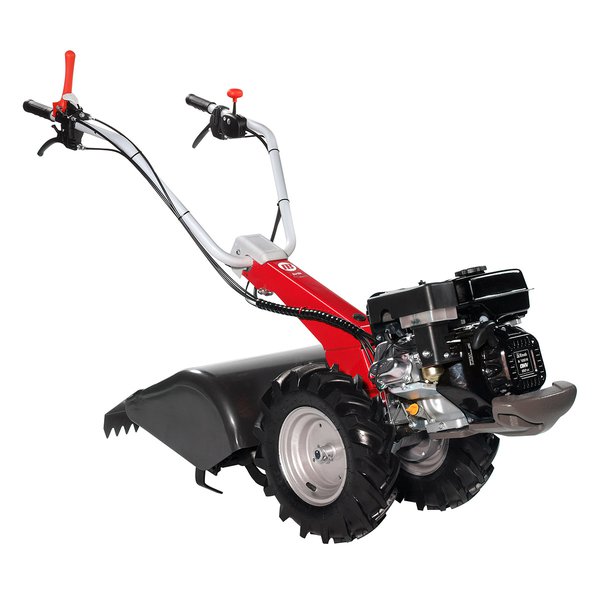

Ideal for home users with small gardens requiring periodic soil preparation for sowing, also in particularly difficult conditions. The rotor turns in the opposite direction to the direction of rotation of the wheels, thus giving the operator the maximum control of the cultivator and significantly reducing transmitted vibration levels.
- Displacement
- 182 cm³
- Gearbox
- 2-speed (1 forward + 1 reverse)
- Transmission
- with gears in oil bath
- Clutch
- direct engagement
- Handlebars
- with vertical adjustment
- Reverse gear
- no
- Differential
- no
- Brakes
- no
- Power take-off
- synchronised with forward travel
- Accessories installation
- no
- Towing hitch
- no
- Cowling
- no
- Weight (with diesel engine, rotor and wheels)
- 75 kg
WITH TWO WHEEL TRACTOR
Gearbox / Speed (km/h):
2 speed (1 forward + 1 reverse) with 4.00-8'' wheels
| 1 | 1.45 |
| 1R | 2.64 |
Dimensions (mm)
| L1 | 1650 |
| L2 | 540 |
| L3 | 1110 |
| H1 | 960 |
| W1 | 430 |
| W2 | 500 |
Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
