Two wheel tractors for intensive use

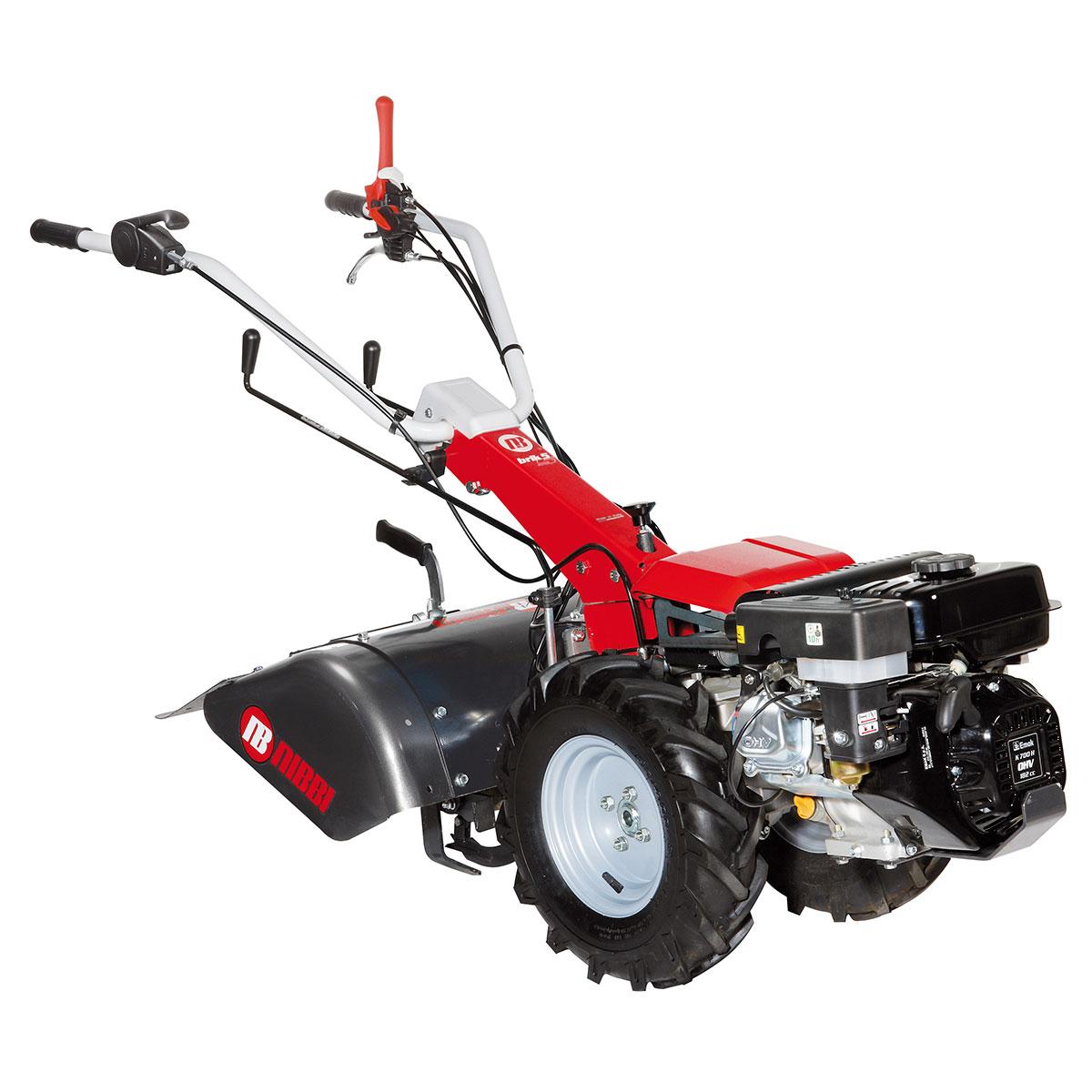

BRIK 5 S

Designed for small and medium-size plots, this machine very effectively combines professional level reliability and performance with extreme ease of handling, making it ideal for demanding home users and smallholders. The full range of accessories, including rotors, cutterbars, brushes and snowthrowers, are designed to meet the requirements of users seeking a multifunction machine that’s both practical and safe.

  • Gearbox 4-speed (2 forward + 2 reverse)
  • Reverse gear yes, with handlebar lever
  • Transmission with gears in oil bath
Read all the features
Power supply Engine Model Displacement Power* Starting Code
GX 200 OHV 196 cm³ 5.8 HP recoil start 68359008EN
K 800 H OHV 182 cm³ 5.7 HP recoil start 68359009EN


* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

Rivenditore online
Punto vendita
Centro assistenza
Rivenditore online e punto vendita
Punto Vendita e assistenza
Rivenditore online e assistenza
Rivenditore online, punto vendita e assistenza

Technical features

Gearbox
4-speed (2 forward + 2 reverse)
Reverse gear
yes, with handlebar lever
Transmission
with gears in oil bath
Clutch
dry bevel type
Handlebars

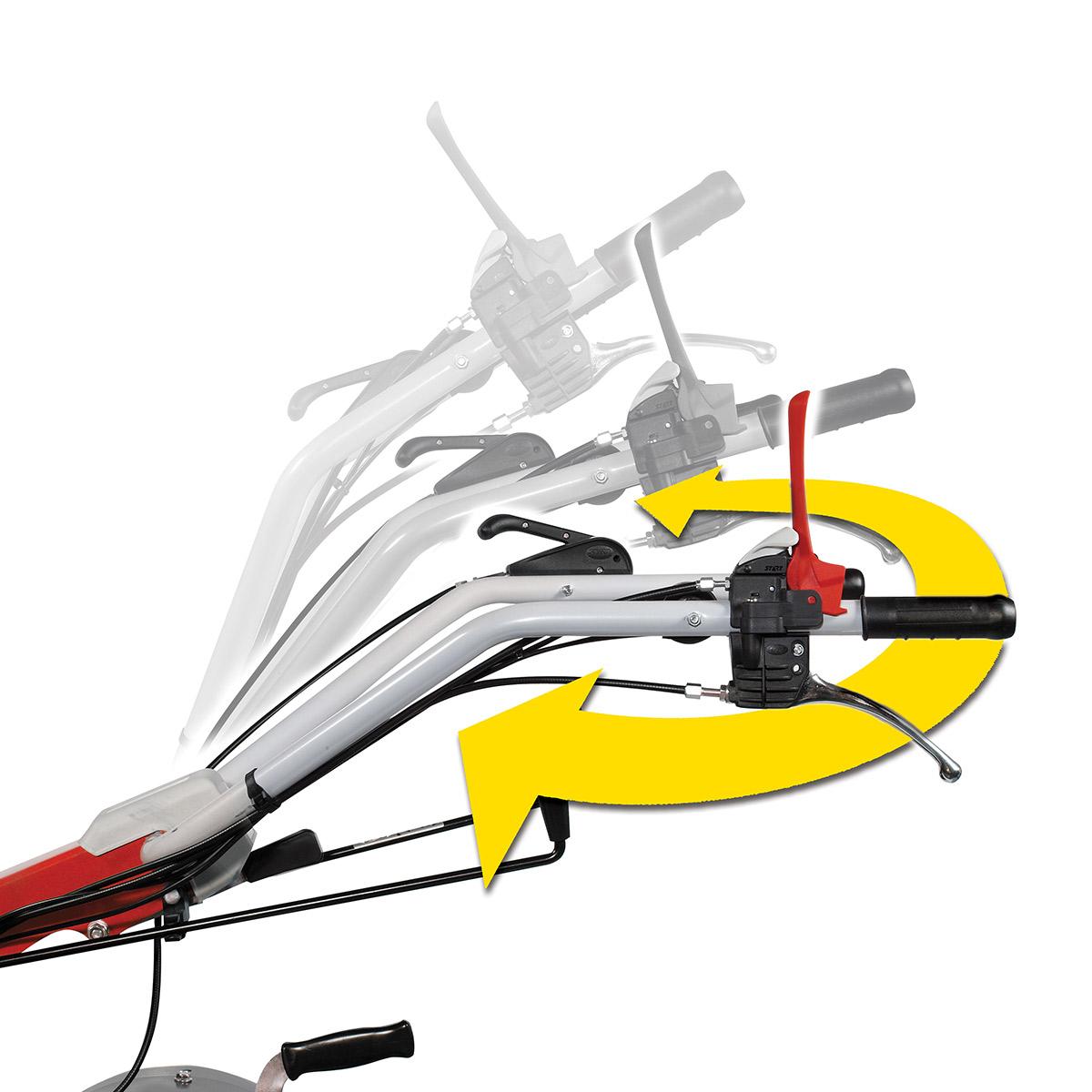

height- and width-adjustable, 180° reversible, with vibration-damping device
Power take-off
independent at 973 rpm
Accessories coupling
QuickFit (optional)
Towing hitch
optional
Weight (with diesel engine, rotor and wheels)
90 kg
EHS ToughTech
WITH TWO WHEEL TRACTOR
Gearbox / Speed (km/h):
2-speed (1 forward + 1 reverse) with 4.00-8'' wheels
11.05
1R1.11
22.20
2R2.32
Dimensions (mm)
Dimensions (mm)
L11740
L2550
L31190
H11250-300
W1370
W2600-400
WITH CUTTERBAR MOWER
Gearbox / Speed (km/h):
2-speed (1 forward + 1 reverse) with 4.00-8'' wheels
11.11
1R1.05
22.32
2R2.20
Dimensions (mm)
Dimensions (mm)
L11670
L2900
L3770
H11250-300
W1370
W21270-950

Data and illustrations published are not binding where specifications of materials are concerned, given that these will always be subject to technical improvement. Technical specifications given are subject to change without notice, as also are directions relating to general use of the equipment. Certain items are not available in all countries, or are available only on request.
