Cutterbar mowers for private use
CONSUMER

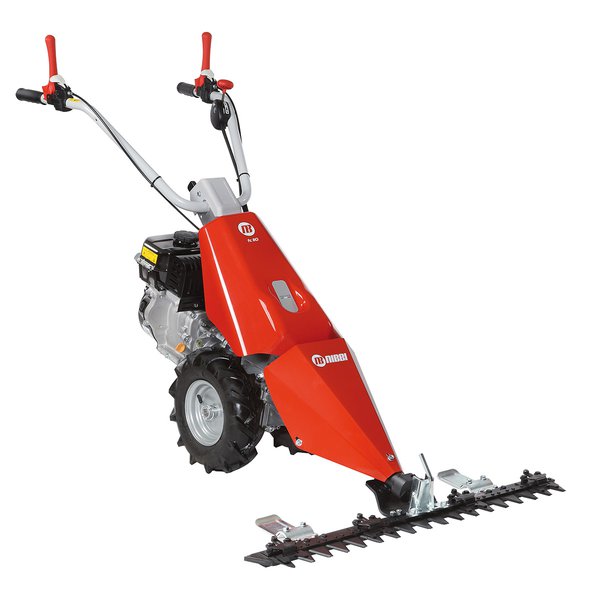

FC 110
CONSUMER
Power supply | Engine | Model | Displacement | Power* | Starting | Code |
---|---|---|---|---|---|---|
K 700 H OHV | 182 cm³ | 5.4 HP | recoil start | 68939002E5 |
* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.
Configured for a centrally mounted cutterbar, this lightweight and manoeuvrable machine is designed to meet the requirements of non-professional users.
- Gearbox
- 1-speed (1 forward)
- Differential
- no
- Reverse gear
- no
- Transmission
- with gears in oil bath
- Clutch
- direct engagement
- Handlebars
- height-adjustable with anti-vibration device
- Brakes
- no
- Power take-off
- independent at 1017 rpm
- Accessories installation
- Integral QuickFit supplied as standard
- Weight
- 70 kg (with wheels, bar drive and cutter)
Gearbox / Speed (km/h) with wheels:
1-speed (1 forward) with 3.50-6'' wheels
1 | 2.30 |
Dimensions (mm)

L1 | 1540 |
L2 | 740 |
L3 | 800 |
H1 | 990 |
W1 | 920 |
W2 | 400 |

Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
