Small cutterbar mowers

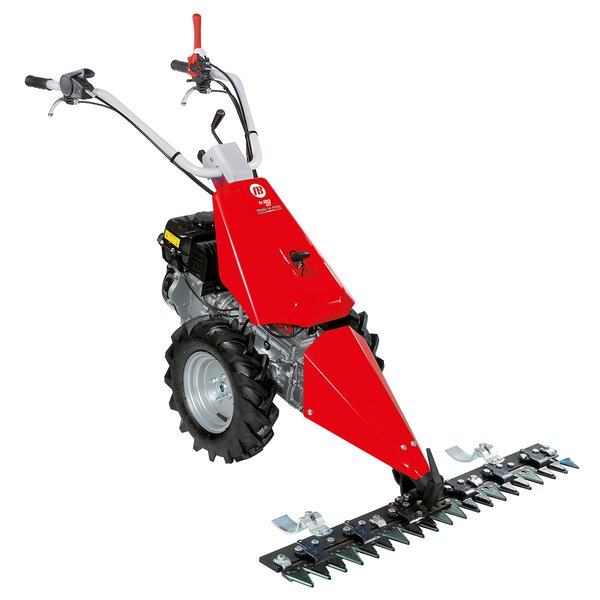

FC 120 S

The machine is primarily used to cut grass and fodder crops and for general field clearing duties. Features such as the vertically and horizontally adjustable handlebars, the QuickFit system, and transmission available also with oil-immersed drive reflect the high level of attention paid to the operator.


  • Gearbox 2-speed (1 forward + 1 reverse)
  • Differential no
  • Fwd/Rev shuttle no
Read all the features

Power supply Engine Model Displacement Power* Starting Code
GX 160 OHV 163 cm³ 4.8 HP recoil start 68959004E5
K 800 H OHV  182 cm³ 5.7 HP recoil start 68959000E5
CH 270 OHV 208 cm³ 7.0 HP recoil start 68959006E5


* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

Gearbox
2-speed (1 forward + 1 reverse)
Differential
no
Fwd/Rev shuttle
no
Transmission
with gears in oil bath
Clutch
dry multidisc
Handlebars
height- and width-adjustable with anti-vibration device
Brakes
yes
Power take-off
independent at 1004 rpm
Accessories coupling
Integral QuickFit supplied as standard
Weight
80 kg (with wheels, bar drive and cutter)
Home Plus
Home Plus
Gearbox / Speed (km/h) with wheels:
2-speed (1 forward + 1 reverse) with 4.00-8'' wheels
13.07
1R1.18
Dimensions (mm)
Dimensions (mm)
L11465
L2600
L3865
H11150
W1920-1220
W2465

Data and illustrations published are not binding where specifications of materials are concerned, given that these will always be subject to technical improvement. Technical specifications given are subject to change without notice, as also are directions relating to general use of the equipment. Certain items are not available in all countries, or are available only on request.
