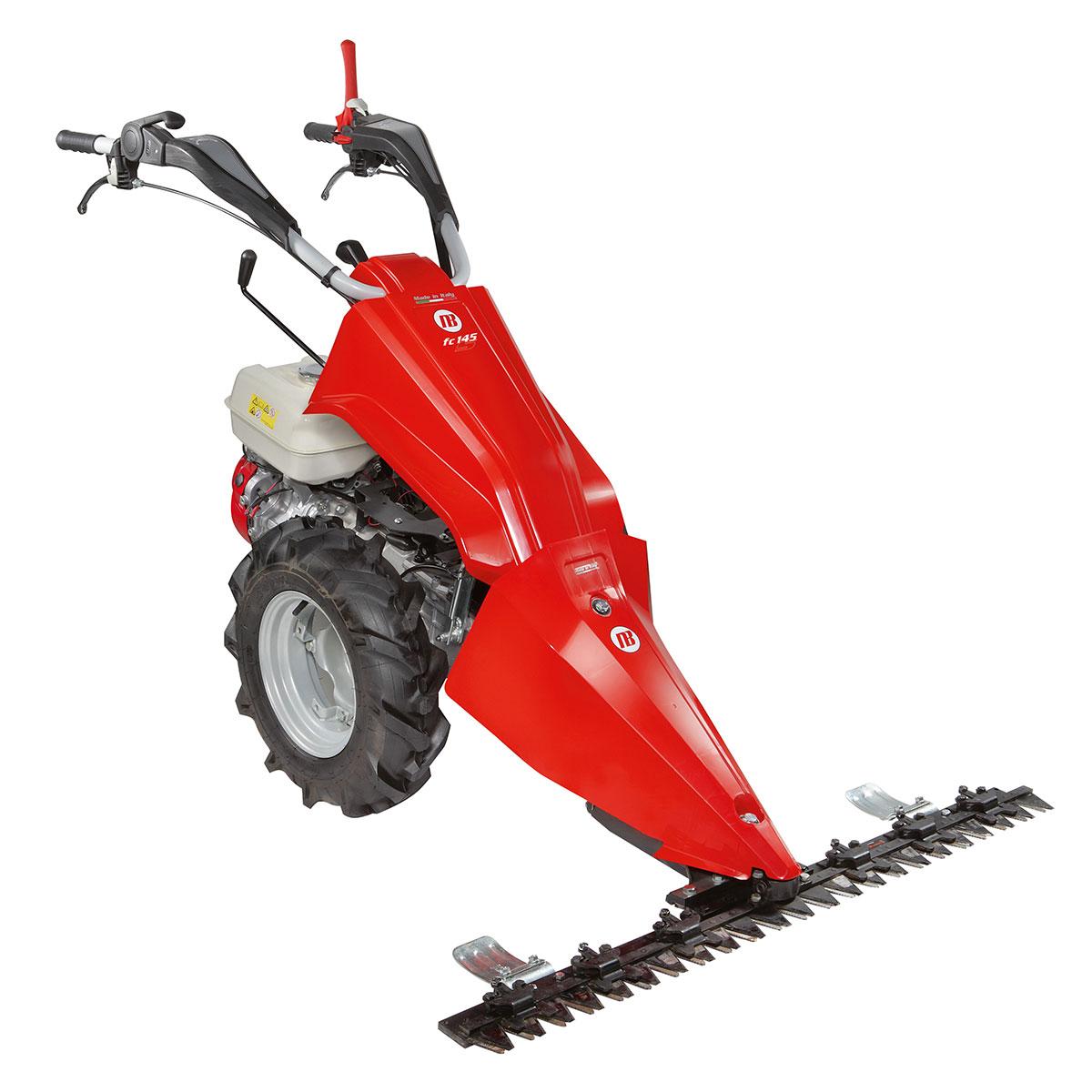

Cutterbar mowers for intensive use

FC 145 S

Safety, ergonomics and styling. Every detail is aimed at assuring safe and accurate work operations: with features such as the adjustable height handlebars, rapid reverse shuttle, QuickFit system and transmission with oil-immersed drive, all reflecting the painstaking attention dedicated to the operator.


  • Gearbox 6-speed (3 forward + 3 reverse)
  • Differential no
  • Transmission with gears in oil bath
Read all the features

Power supply Engine Model Displacement Power* Starting Note Code
GX 160 OHV 163 cm³ 4.8 HP recoil start   68919210E5
K 900 H OHV  252 cm³ 7.0 HP recoil start   68919212E5
CH 270 OHV 208 cm³ 7.0 HP recoil start   68919204E5
GX 270 OHV 270 cm³ 8.4 HP recoil start   68919201E5
CH 395 OHV  277 cm³ 9.5 HP recoil start   68919206E5
K 7000 HD  349 cm³ 6.7 HP recoil start

as standard with ballast for oil-immersed drive

68919214E5


* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

Gearbox
6-speed (3 forward + 3 reverse)
Differential
no
Transmission

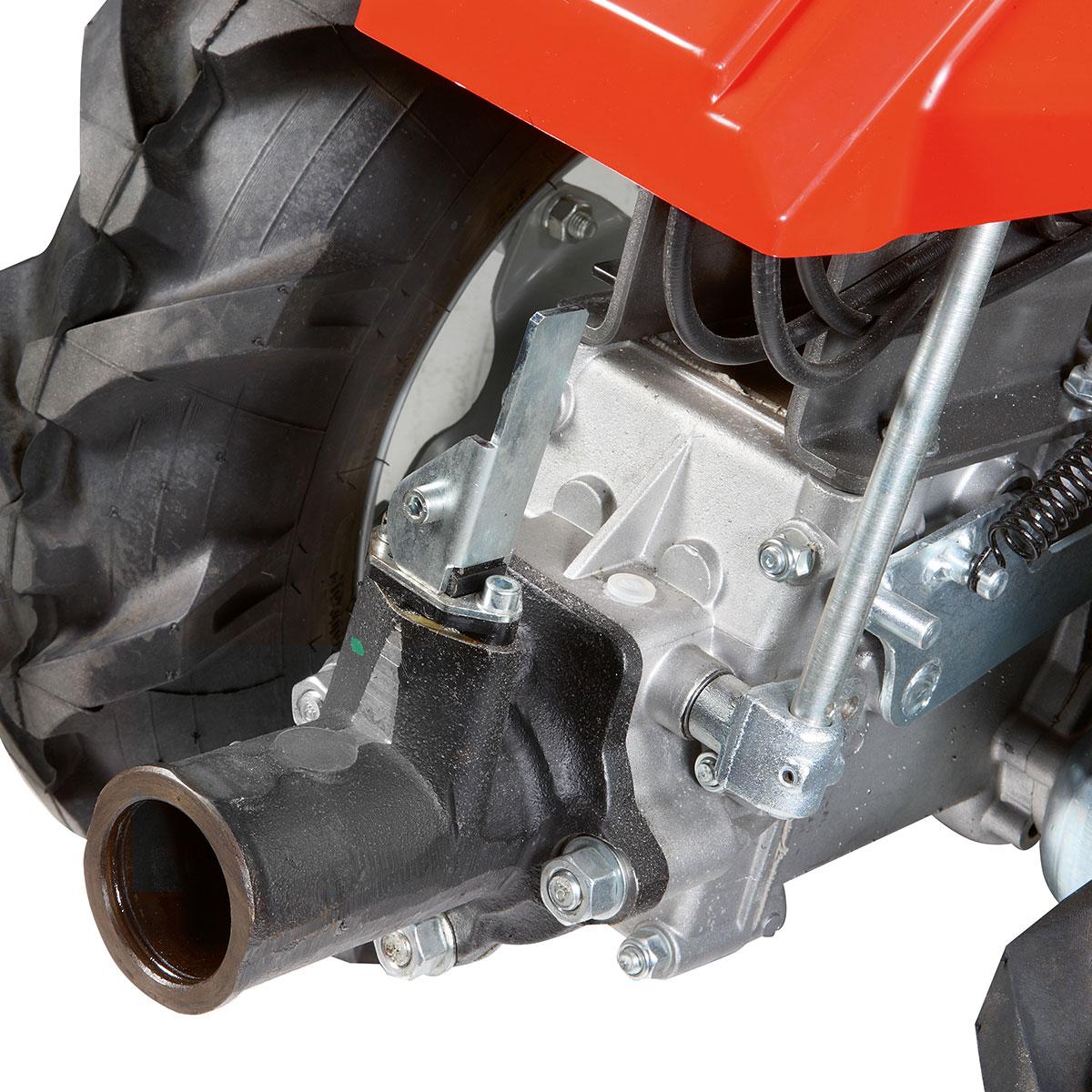

with gears in oil bath
Clutch
dry multidisc
Handlebars

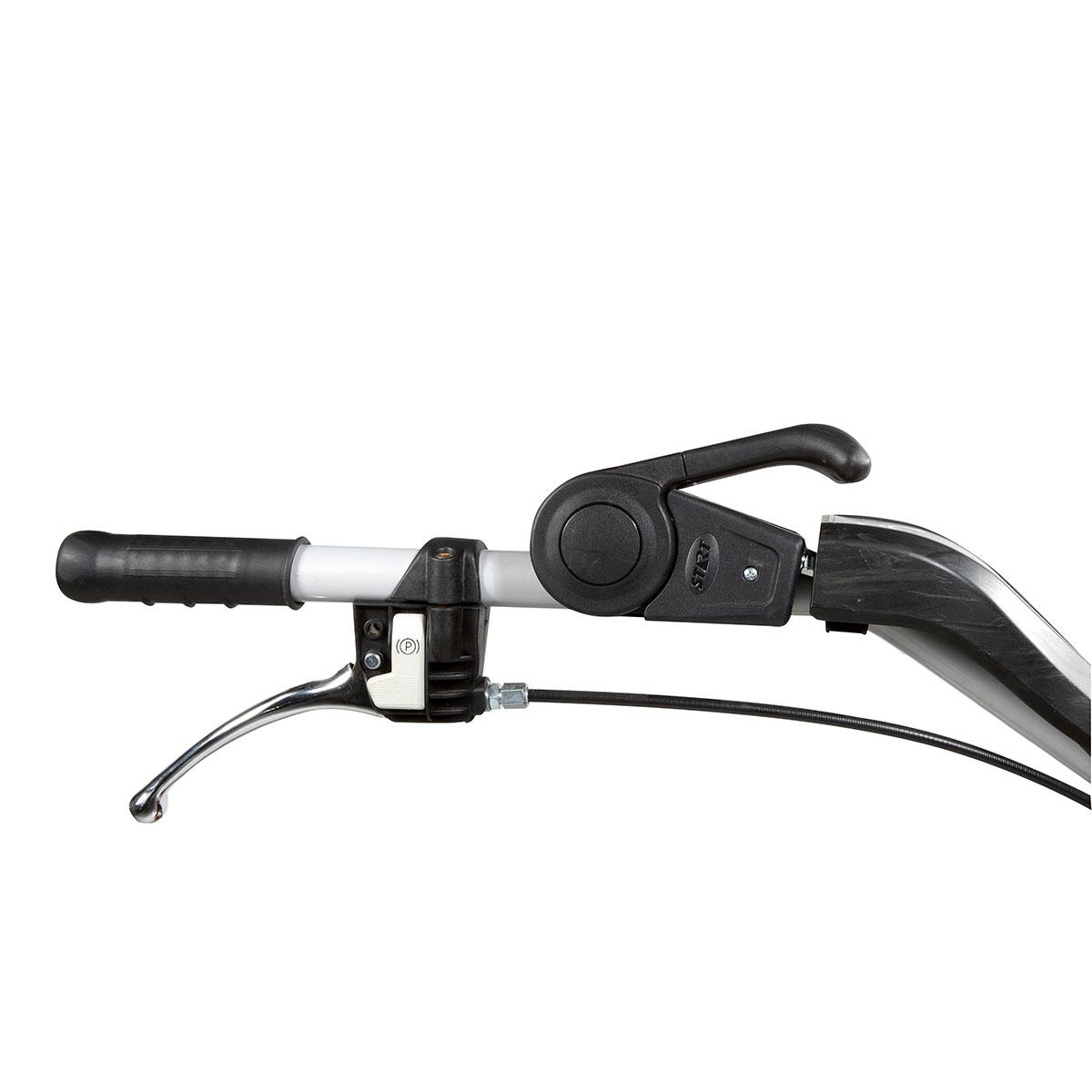

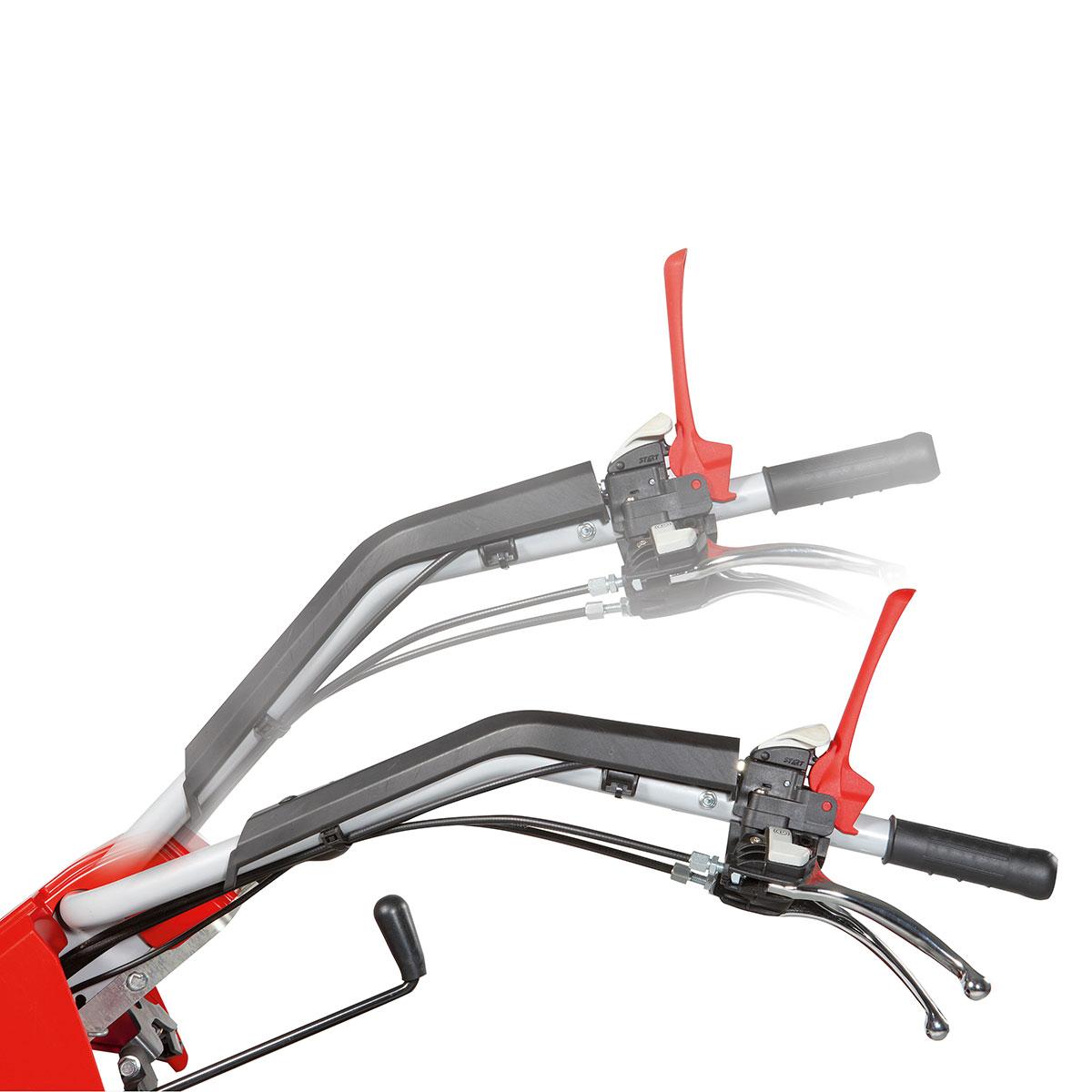

height- and width-adjustable with anti-vibration device
Brakes
yes
Power take-off
independent at 973 rpm
Accessories coupling
Integral QuickFit supplied as standard
Weight
115 kg (with wheels, bar drive and cutter)
Tough Tech
Tough Tech
Gearbox / Speed (km/h) with wheels:
6-speed (3 forward + 3 reverse) with 4.00-8'' wheels
11.05
1R1.11
22.20
2R2.32
33.63
3R3.83
Dimensions (mm)
Dimensions (mm)
L11660 (1665)
L2900 (950)
L3760
H11250-400
W1950-1450
W2437

Data and illustrations published are not binding where specifications of materials are concerned, given that these will always be subject to technical improvement. Technical specifications given are subject to change without notice, as also are directions relating to general use of the equipment. Certain items are not available in all countries, or are available only on request.
