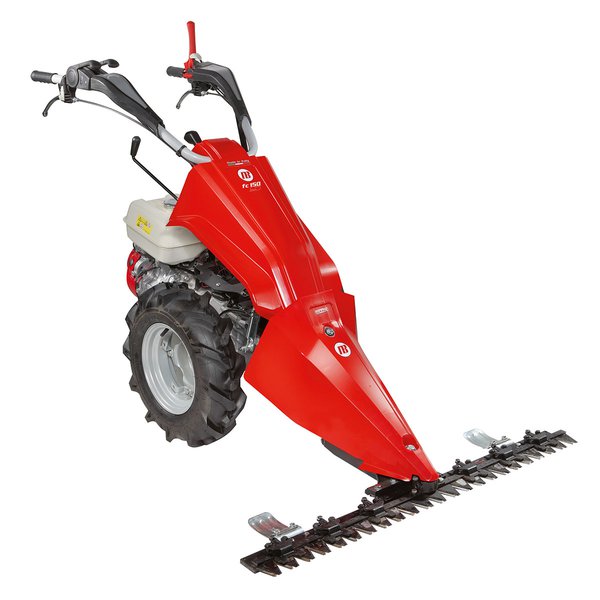

Professional cutterbar mowers

PROFESSIONAL

FC 150 S

PROFESSIONAL
Power supply Engine Model Displacement Power* Starting Notes Code
K 1100 H 302 cm³ 8.4 HP recoil start   68919256E5
GX 270 OHV 270 cm³ 8.4 HP recoil start   68919251E5
CH 395 OHV 277 cm³ 9.5 HP recoil start   68919260E5
K 7000 HD 349 cm³ 6.7 HP recoil start

as standard with ballast for oil-immersed drive

68919258E5
KD 15 350 349 cm³ 7.5 HP recoil start   68919254E5


* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

Safety, ergonomics, versatility. The ideal machine for cutting grass and forage crops in open field conditions and for clearing activities. With the optimal combination of power and manageability, this cutterbar mower is equipped as standard with independently controlled brakes and differential.

Gearbox
6-speed (3 forward + 3 reverse)
Differential
yes
Reverse gear
yes, control lever on handlebar
Transmission
with gears in oil bath
Clutch
dry multidisc
Handlebars
height-adjustable with anti-vibration device
Brakes
yes
Power take-off
independent at 973 rpm
Accessories installation
Integral QuickFit supplied as standard
Weight
135 kg (with wheels, bar drive and cutter)

Gearbox / Speed (km/h) with wheels:

6-speed (3 forward + 3 reverse) with 4.00-10''

11.20
1R1.27
22.57
2R2.66
34.17
3R4.41

Dimensions (mm)

Dimensions (mm) | Nibbi
L11660 (1665)
L2900 (950)
L3760
H11255-405
W1900-1600
W2445-586
Sharp Pro | Nibbi
Sharp Pro
Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
