Professional cutterbar mowers

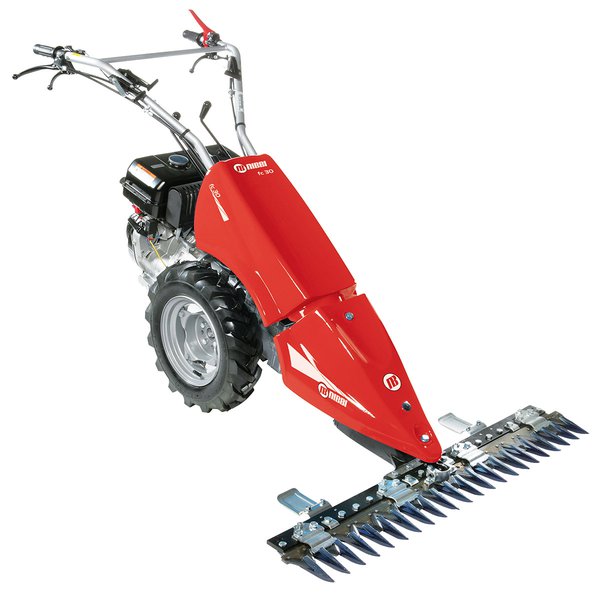

FC 30

The model FC 30 completes the semi-professional range: this is the ideal machine for mowing grass and forage crops or cleaning in open fields. With an excellent combination of power and easy handling, this cutterbar mower is fitted with independently controlled brakes as standard.


  • Gearbox 7-speed (4 forward + 3 reverse)
  • Differential yes
  • Fwd/Rev shuttle yes, control lever on handlebar
Read all the features

Power supply Engine Model Displacement Power* Starting Notes Code
K 1100 H 302 cm³ 8.4 HP recoil start   68919003X5
GX 270 OHV 270 cm³ 8.4 HP recoil start   68919035X5
K 7000 HD 349 cm³ 6.7 HP recoil start as standard with ballast for oil-immersed drive 68919008X5



* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.



Gearbox
7-speed (4 forward + 3 reverse)
Differential
yes
Fwd/Rev shuttle
yes, control lever on handlebar
Transmission
with gears in oil bath
Clutch
dry multidisc
Handlebars
height-adjustable with anti-vibration device
Brakes
yes
Power take-off
independent at 973 rpm
Accessories coupling
Integral QuickFit supplied as standard
Weight
135 kg (with wheels, bar drive and cutter)
Sharp Pro
Sharp Pro
Gearbox / Speed (km/h) with wheels:
7-speed (4 forward + 3 reverse) with 4.00-10'' wheels
11.20
1R1.27
22.57
2R2.66
34.17
3R4.41
413.05
Dimensions (mm)
Dimensions (mm)
L11660 (1665)
L2900 (950)
L3760
H11255-405
W1900-1600
W2445-586

Data and illustrations published are not binding where specifications of materials are concerned, given that these will always be subject to technical improvement. Technical specifications given are subject to change without notice, as also are directions relating to general use of the equipment. Certain items are not available in all countries, or are available only on request.
