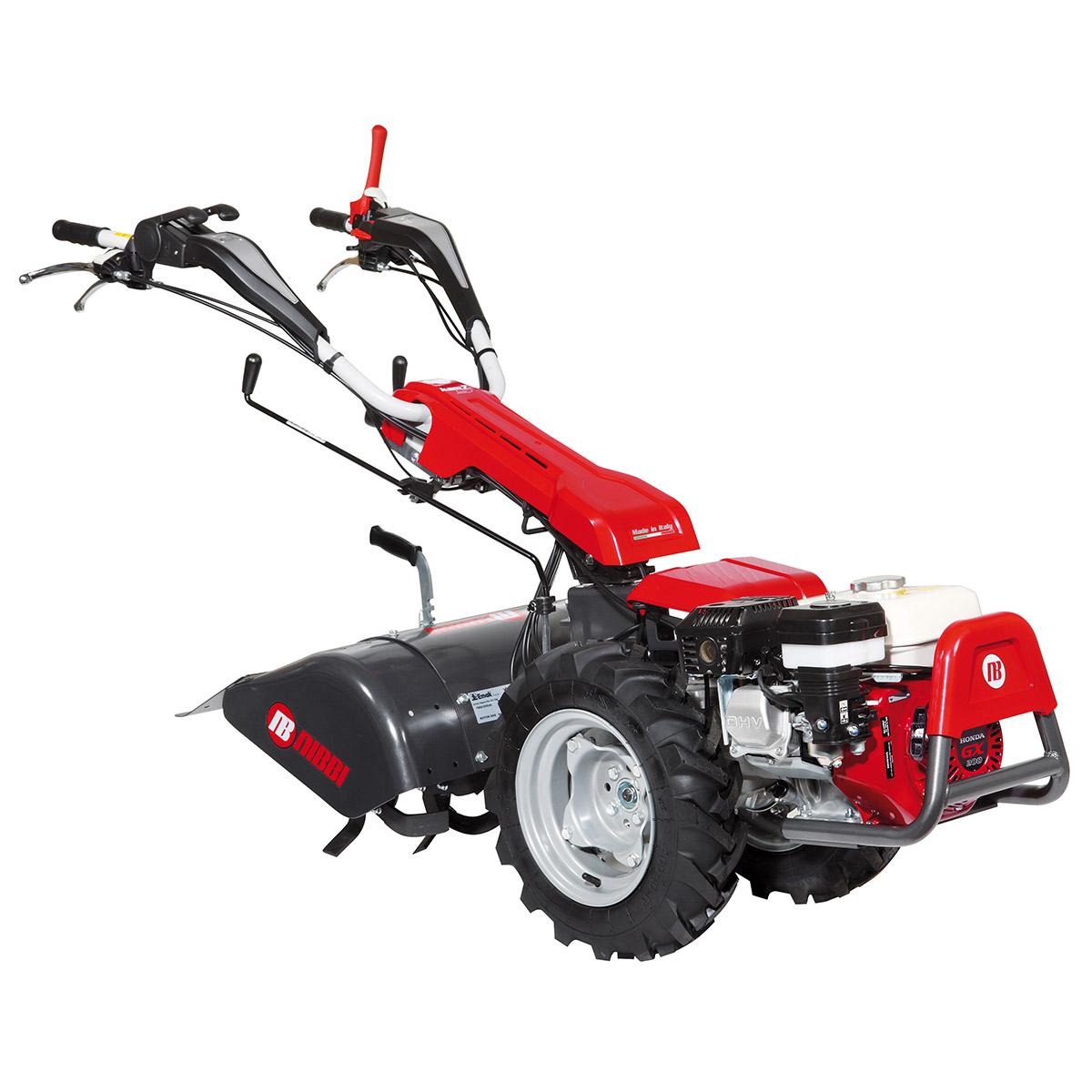

Two wheel tractors for intensive use

KAM 7 S

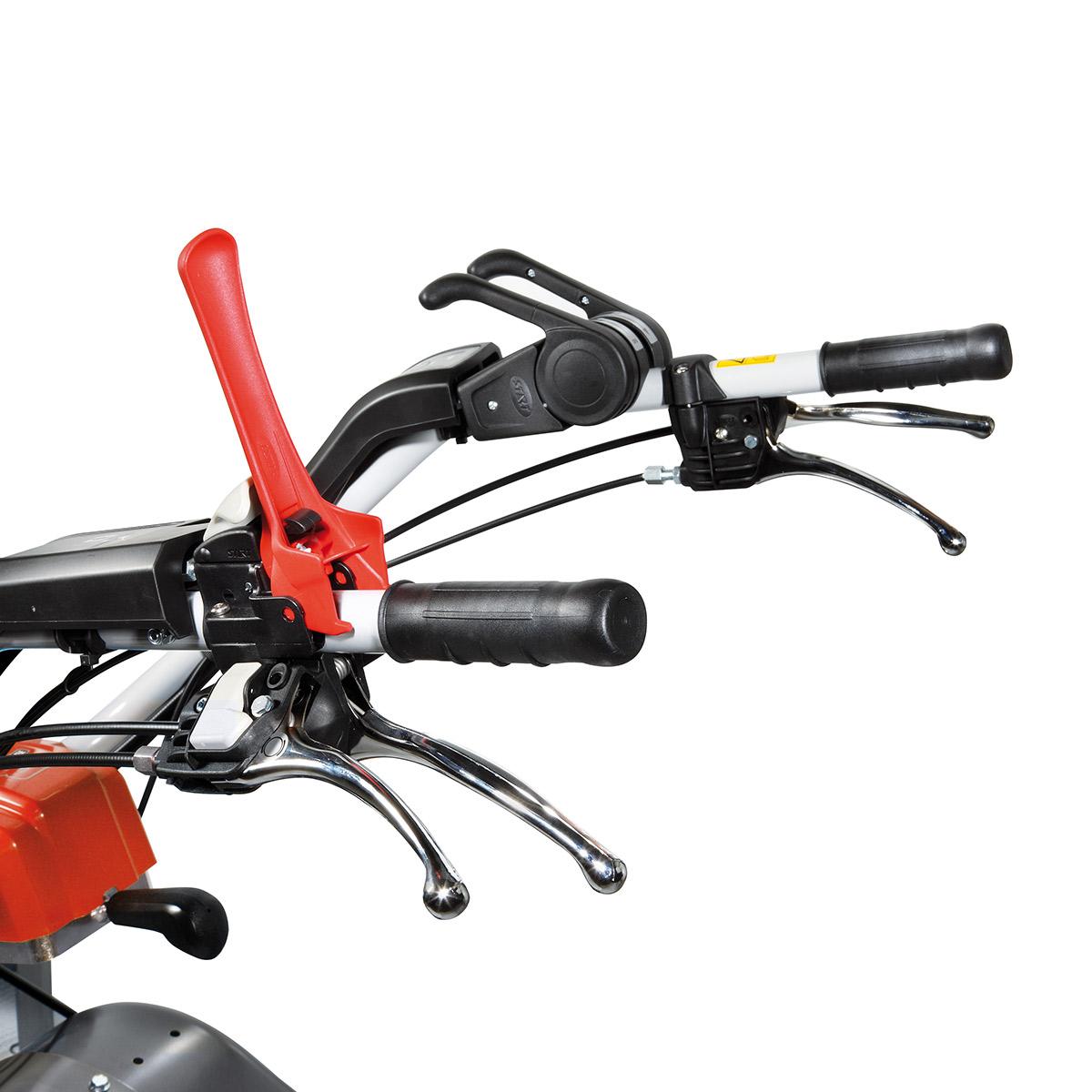

Thanks to the differential with locking lever on the handlebars, which affords perfect manoeuvrability and grip even on the most difficult terrain and on slopes, the key strength of this machine is its ease of use. The facility to use a range of different accessories for tillage, grass cutting and maintenance of gardens or urban spaces makes these machines exceptionally versatile and perfectly adapted to meet the needs of demanding home users and smallholders.

  • Gearbox 4-speed (2 forward + 2 reverse)
  • Differential yes
  • Reverse gear yes, with handlebar lever
Read all the features
Power supply Engine Model Displacement Power* Starting Code
GX 200 OHV 196 cm³ 5.8 HP recoil start 68359102EN
K 800 H OHV 182 cm³ 5.7 HP recoil start 68359106EN
CH 270 OHV 208 cm³ 7.0 HP recoil start 68359107EN
KM 178 296 cm³ 5.5 HP recoil start 68359108EN
K 7000 HD 349 cm³ 6.7 HP recoil start 68359115EN


* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

Technical features

Gearbox
4-speed (2 forward + 2 reverse)
Differential
yes
Reverse gear
yes, with handlebar lever
Transmission
with gears in oil bath
Clutch
dry cone

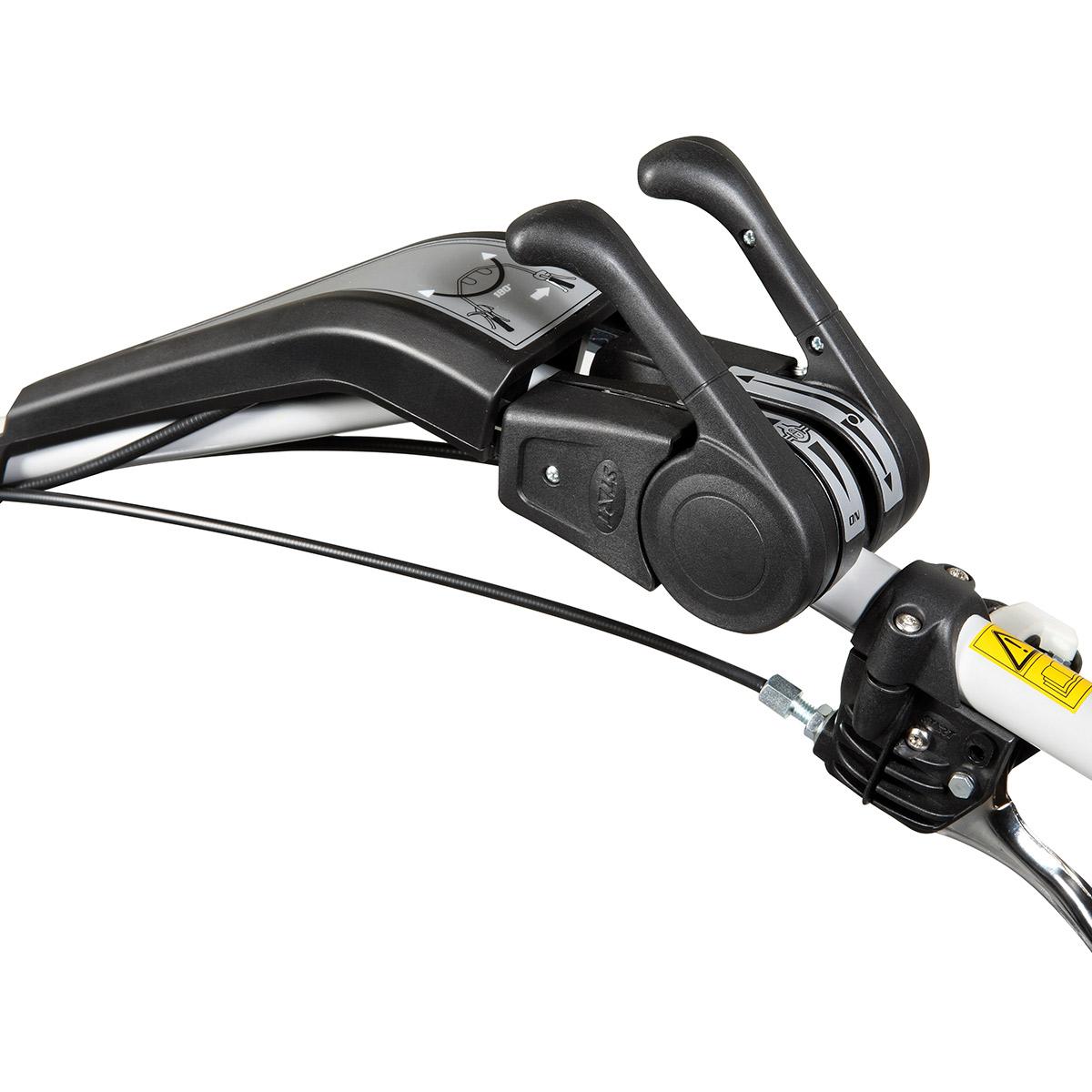

Handlebars
height- and width-adjustable, 180° reversible, with vibration-damping device
Brakes
yes

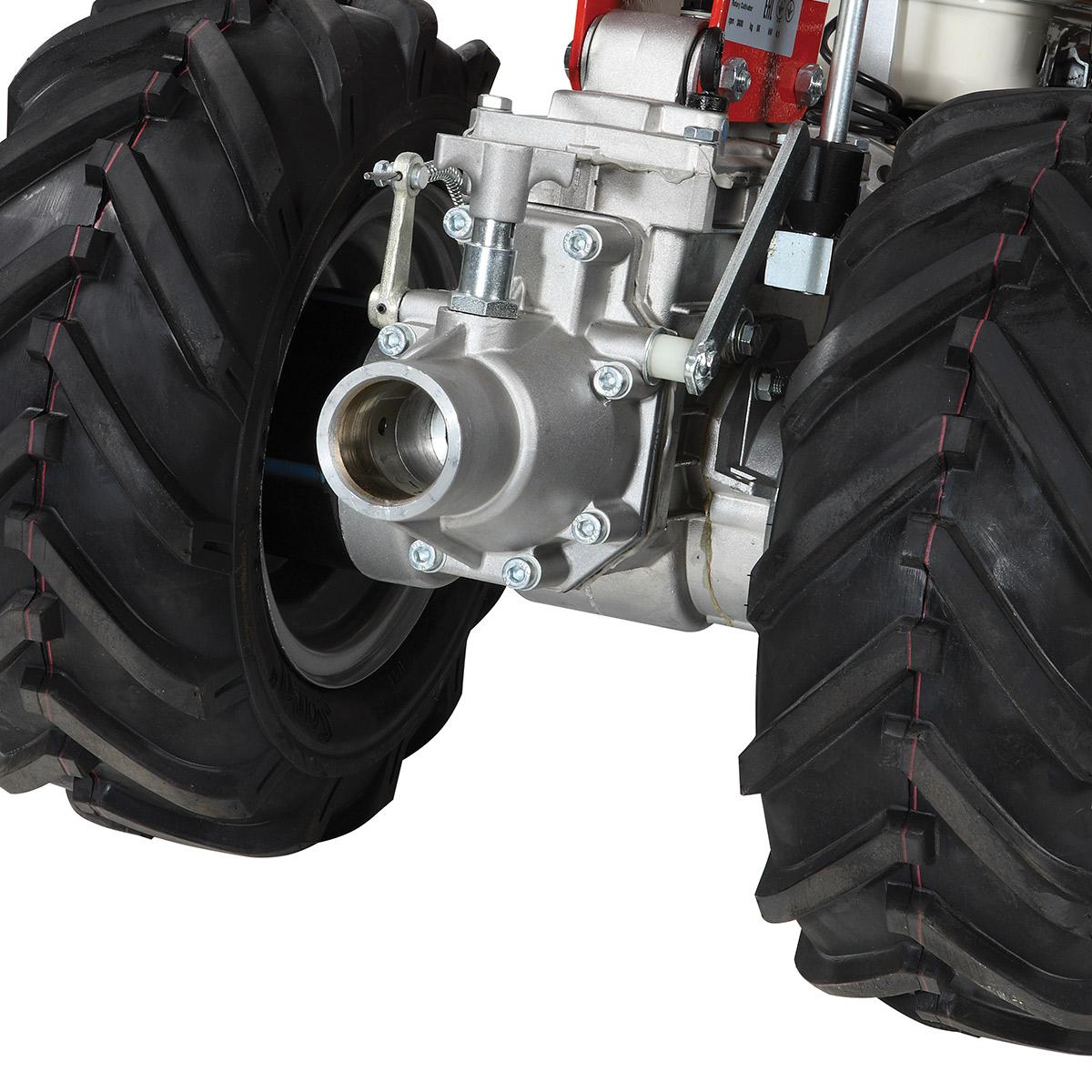

Power take-off
independent at 973 rpm
Accessories coupling
QuickFit (optional)
Towing hitch
yes
Cowling
no
Weight (with diesel engine, rotor and wheels)
120 kg
Location
Countryside
EHS ToughTech
WITH TWO WHEEL TRACTOR
Gearbox / Speed (km/h):
4-speed (2 forward + 2 reverse) with 4.00-10'' wheels
11.20
1R1.27
22.52
2R2.66
Dimensions (mm)
Dimensions (mm)
L11780
L2570
L31210
H11340-470
W1370
W2700-400

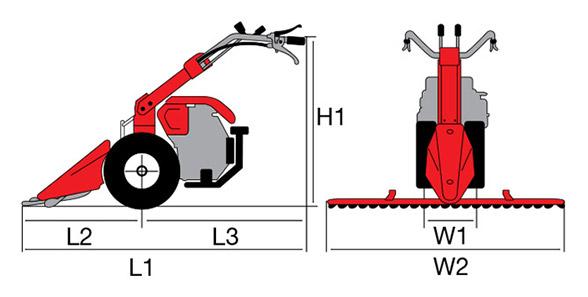

WITH CUTTERBAR MOWER
Gearbox / Speed (km/h):
4-speed (2 forward + 2 reverse) with 4.00-10'' wheels
11.27
1R1.20
22.66
2R2.52
Dimensions (mm)
Dimensions (mm)
L11690
L2900
L3790
H11440-620
W1370
W21420-950

Data and illustrations published are not binding where specifications of materials are concerned, given that these will always be subject to technical improvement. Technical specifications given are subject to change without notice, as also are directions relating to general use of the equipment. Certain items are not available in all countries, or are available only on request.
