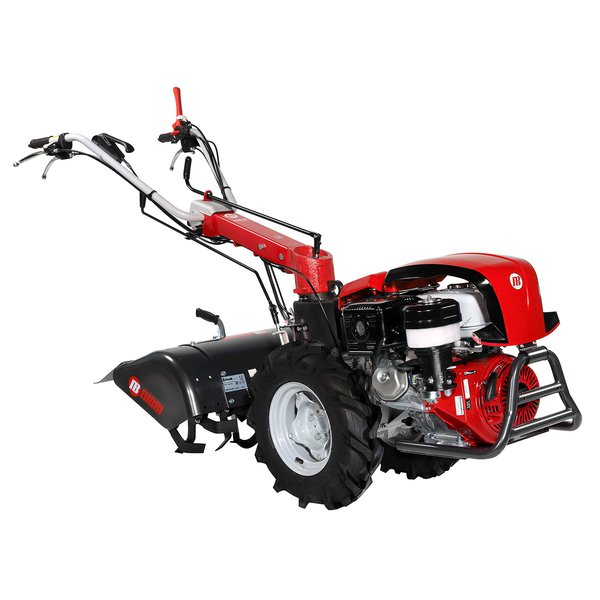

Professional rotary cultivators

MAK 17 S

Professional machine with power rating and features that recommend it for root crop harvesting and tillage duties on all terrain types. Combines exceptional ease of handling and versatility with the ability to work on all types of terrain safely, thanks to the self-locking differential and 5-speed gearbox.

  • Gearbox 5-speed (4 forward + 1 reverse)
  • Reverse gear yes, with gearshift lever
  • Transmission with gears in oil bath
Read all the features
Power supply Engine Model Displacement Power* Starting Notes Code
GX 340 OHV 389 cm³ 10,7 HP recoil start multidisc clutch 68339118EN
CH 395 OHV 277 cm³ 9,5 HP recoil start/electric multidisc clutch/ battery supplied as standard 68339114EN
CH 440 OHV 429 cm³ 14,0 HP recoil start/electric mono-disc clutch/ battery supplied as standard 68339115EN
15LD440 441 cm³ 10,9 HP recoil start multidisc clutch 68339109EN
15LD440 441 cm³ 10,9 HP recoil start/electric multidisc clutch/ battery supplied as standard 68339108EN
15LD440 441 cm³ 10,9 HP recoil start/electric multidisc clutch/ lights/ battery supplied as standard 6 68339110EN
3LD510 505 cm³ 12,2 HP recoil start mono-disc clutch 68339111EN
3LD510 505 cm3 12,2 HP electric mono-disc clutch/ battery supplied as standard 68339112EN
3LD510 505 cm³ 12,2 HP electric mono-disc clutch/ lights/ battery supplied as standard 68339113EN

* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

Rivenditore online
Punto vendita
Centro assistenza
Rivenditore online e punto vendita
Punto Vendita e assistenza
Rivenditore online e assistenza
Rivenditore online, punto vendita e assistenza

Technical features

Gearbox
5-speed (4 forward + 1 reverse)
Reverse gear
yes, with gearshift lever
Transmission
with gears in oil bath
Clutch
dry multidisc or mono-disc
Handlebars
height- and width-adjustable, 180° reversible, with vibration-damping device
Power take-off
2 power take offs: one indipendent 2-speed PTO (1° 540 rpm - 2° 900 rpm) and one synchronised PTO
Accessories coupling
flanged to PTO
Towing hitch
yes
Cowling
yes, with integral tool compartment/battery box
Weight (with diesel engine, rotor and wheels)
250 kg
EHS SharpPro
WITH TWO WHEEL TRACTOR
Gearbox / Speed (km/h):
5-speed (4 forward + 1 reverse) with 6.50/80-12'' wheels
11.08
1R2.82
22.02
33.61
47.91
Dimensions (mm)
Dimensions (mm)
L12180
L2730
L31450
H1600-1300
W1420-510
W2600-900
WITH CUTTERBAR MOWER
Gearbox / Speed (km/h):
5-speed (4 forward + 1 reverse) with 6.50/80-12'' wheels
11.08
1R2.82
22.02
33.61
47.91
Dimensions (mm)
Dimensions (mm)
L12185
L21125
L31060
H1700-1300
W1430-490
W21150-1600

Data and illustrations published are not binding where specifications of materials are concerned, given that these will always be subject to technical improvement. Technical specifications given are subject to change without notice, as also are directions relating to general use of the equipment. Certain items are not available in all countries, or are available only on request.
