Transporters for private use

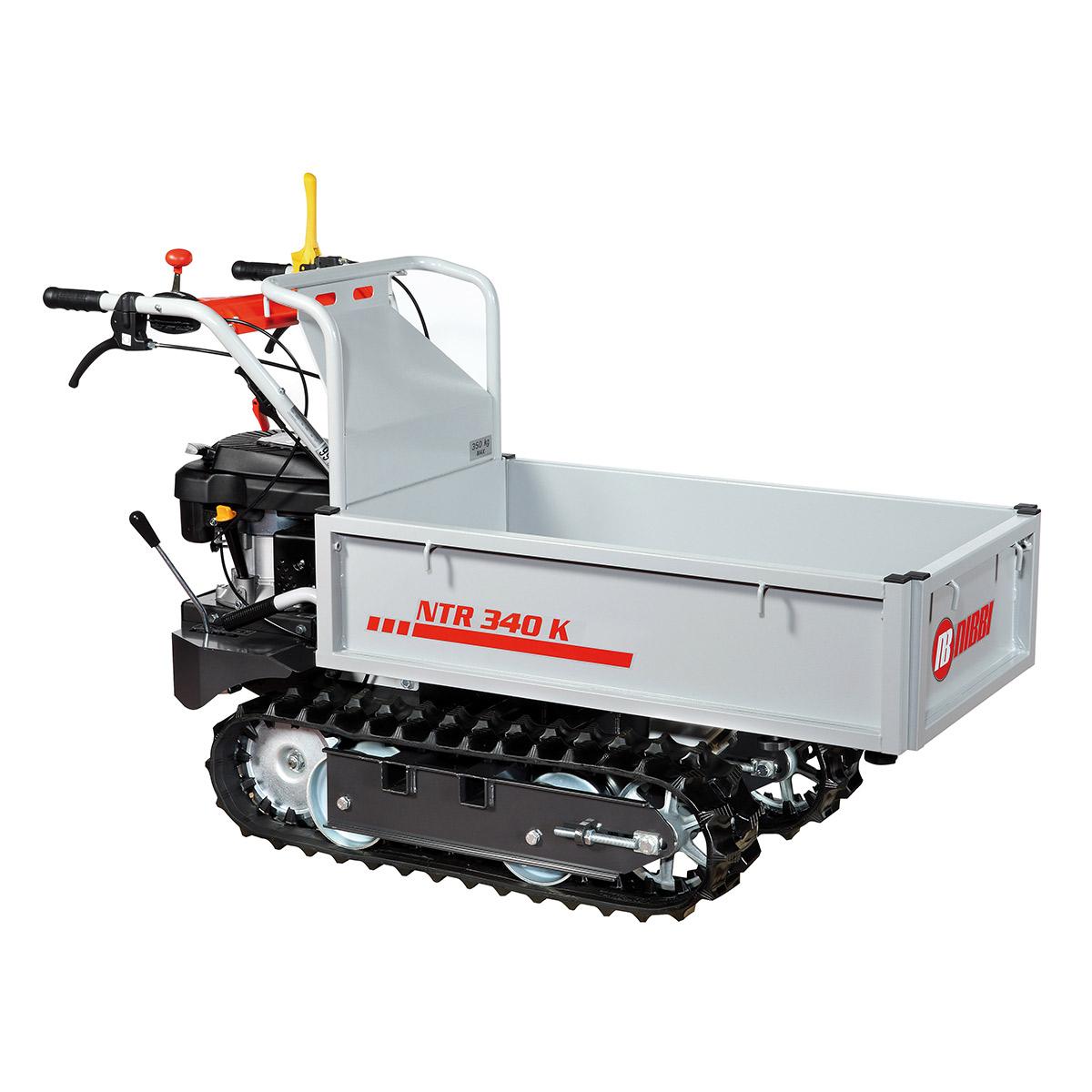

NTR 340
Designed for demanding home users needing to transport all types of material, such as firewood, fruit crates, and other bulky items, this machine is practical and easy to handle on all types of terrain.
- Gearbox 4-speed (2 forward + 2 reverse)
- Load capacity 350 Kg
- Lift/dump manual
| Power supply | Engine | Model | Displacement | Power* | Starting | Code |
|---|---|---|---|---|---|---|
 |
750 DOV | 161 cm³ | 3.8 HP | recoil start | 68719041 | |
| GCVx 170 OHC | 166 cm³ | 4.4 HP | recoil start | 68719049E5 | ||
| K 655 OHV | 166 cm³ | 3.9 HP | recoil start | 68719045E5 |
* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.
SHARE
3075251B motore / engine E5
- F
- GB
- I
- SK
- E
- D
Technical features
| 1 | 1.60 |
| 1R | 1.40 |
| 2 | 3.60 |
| 2R | 3.40 |
| L1 | 1530-1665 |
| L2 | 925-1060 |
| H1 | 965 |
| H2 | 885 |
| H3 | 570 |
| H4 | 240 |
| H5 | 330 |
| H6 | 65 |
| W1 | 590 |
| W2 | 603-983 |
| W3 | 170 |
| W4 | 520-900 |
| P1 | 690 |
| P2 | 415-550 |
User's and maintenance manuals
BUY THEM TOGETHER
Data and illustrations published are not binding where specifications of materials are concerned, given that these will always be subject to technical improvement. Technical specifications given are subject to change without notice, as also are directions relating to general use of the equipment. Certain items are not available in all countries, or are available only on request.
