Professional transporters

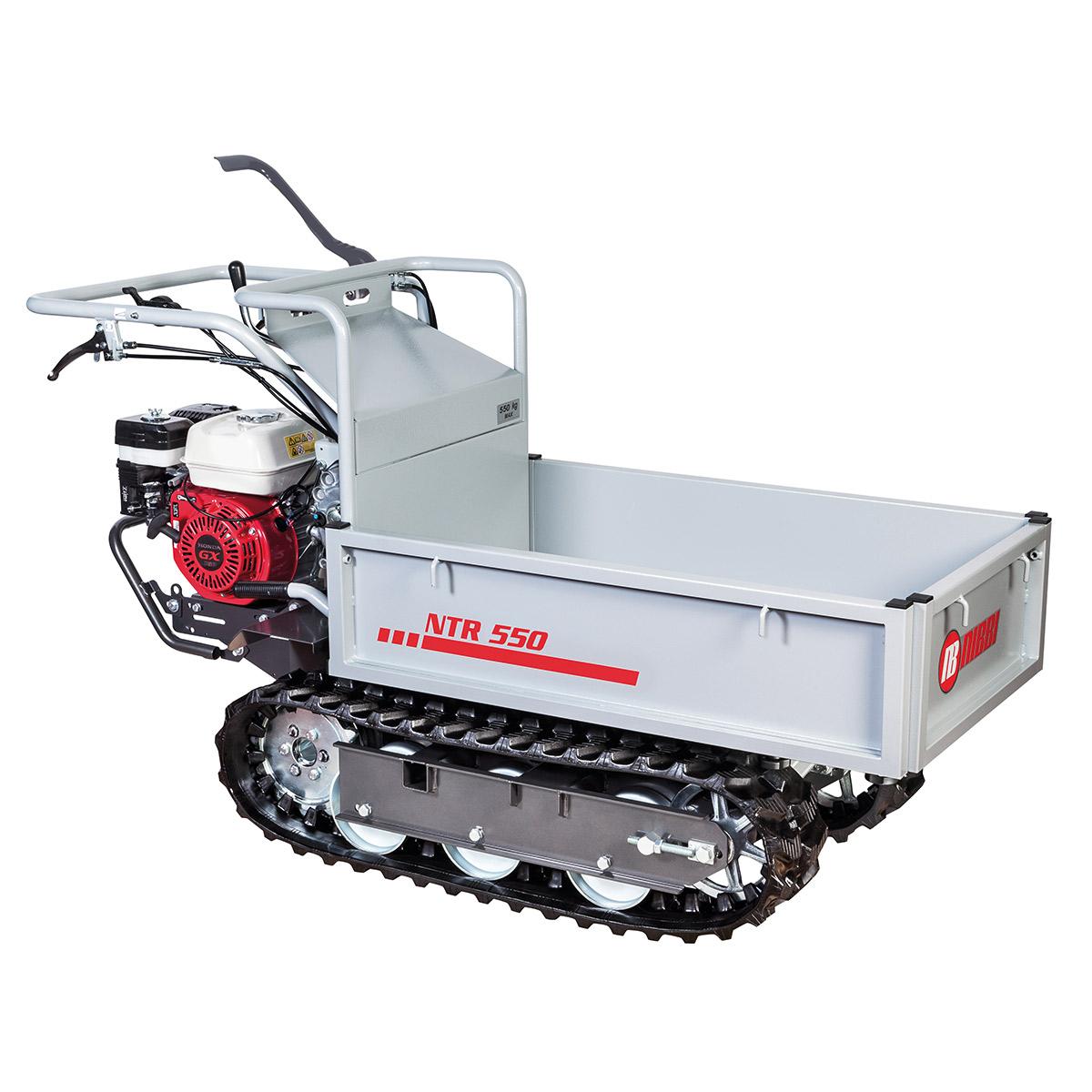

NTR 550

This is a powerful professional machine, rugged and compact, and ideal for use on all types of terrain. With high load capacity, this machine stands out for its versatility and the safety devices installed.


  • Gearbox 6-speed (4 forward + 2 reverse)
  • Load capacity 550 Kg
  • Lift/dump manual
Read all the features

Power supply Engine Model Displacement Power* Starting Code
GX 160 OHV 163 cm³ 4.8 HP recoil start 68729119E5
K 800 H 182 cm³ 5.7 HP recoil start 68719135E5



* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.



Gearbox
6-speed (4 forward + 2 reverse)
Load capacity
550 Kg
Lift/dump
manual
Transmission
with gears in oil bath
Clutch
belt, with automatic disengagement when the control lever is released
Brakes
with expansion and automatic cut-in when the clutch is released
Body
telescoping
Dump angle
50°
Steering
with independently controlled releases and brakes
Minimum turning radius
700 mm
Power take-off
independent at 2100 rpm
Weight
200 kg
Sharp Pro
Sharp Pro
Gearbox / Speed (km/h):
11.88
1R1.86
23.16
2R3.13
34.13
47.00
Dimensions (mm)
Dimensions (mm)
L11745
L21000-1180
H11020
H2900
H3590
H4240
H5339
H670
W1620
W2733
W3-
W4650-1100
P1785
P2405

Data and illustrations published are not binding where specifications of materials are concerned, given that these will always be subject to technical improvement. Technical specifications given are subject to change without notice, as also are directions relating to general use of the equipment. Certain items are not available in all countries, or are available only on request.
