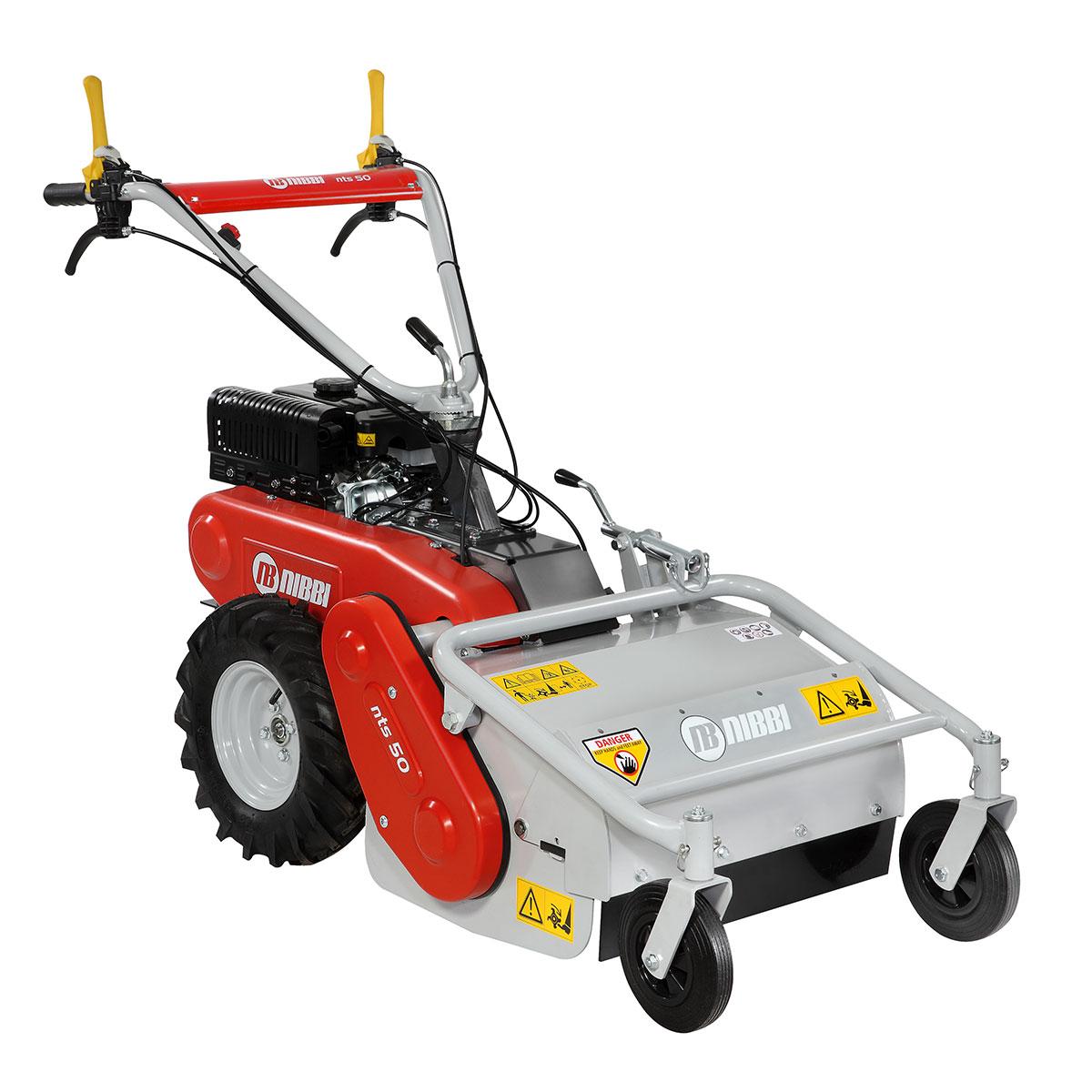

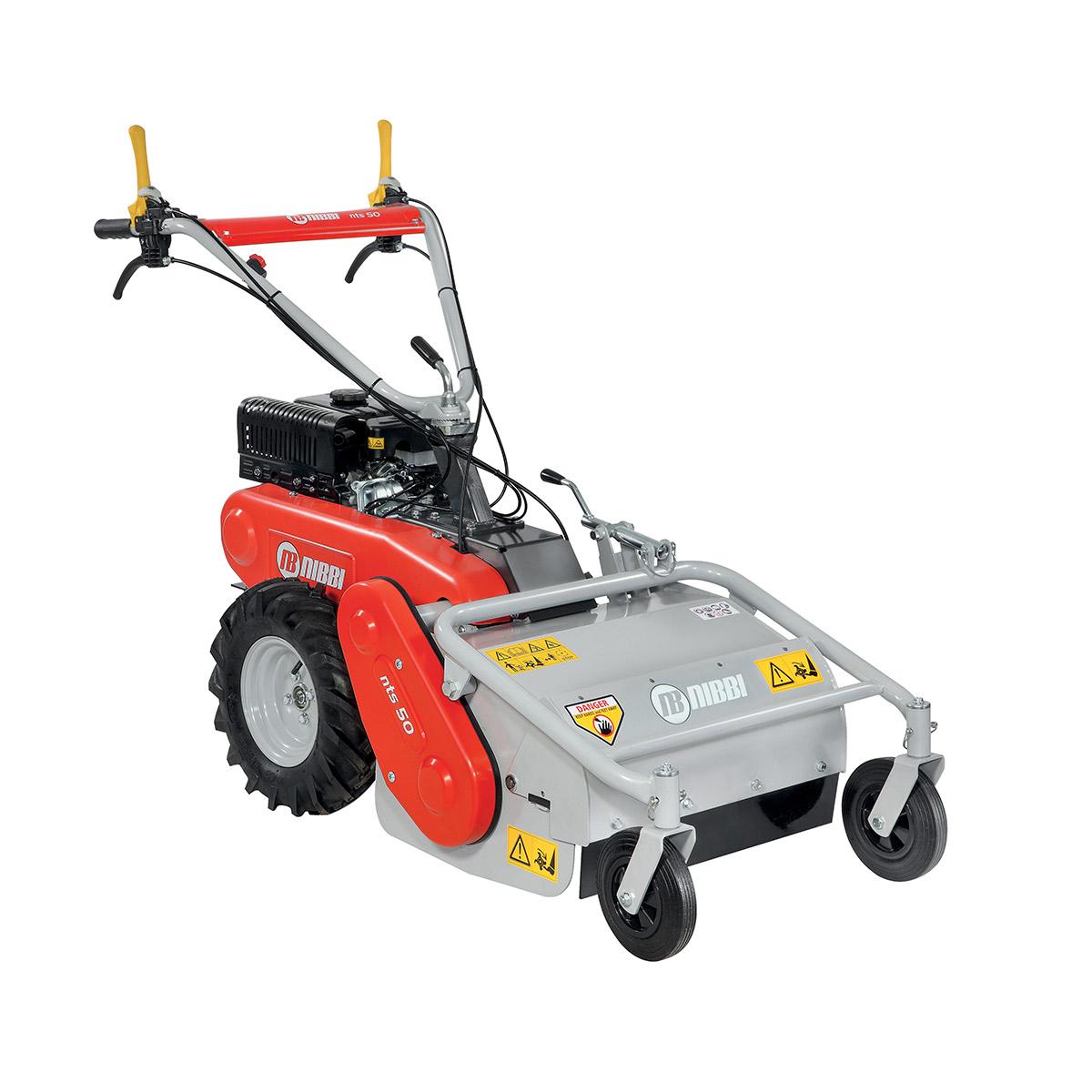

Flail mowers for private use
NTS 50
| Power supply | Engine | Model | Displacement | Power* | Starting | Code |
|---|---|---|---|---|---|---|
| K 800 H | 182 cm³ | 5.7 HP | recoil start | 68259101E5 |
* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.
Compact and high-performance model, designed for home gardeners and professional operators. Grass, shoots, low vegetation and scrub are the ideal working environment. The compact dimensions of the rotor unit make this machine highly manoeuvrable in confined spaces and when moving between work areas. No type of terrain is off-limits, thanks to the large tyred wheels. A versatile machine that easily adapts to different types of environments and cuts.
- Gearbox
- 4-speed (3 forward + 1 reverse)
- Transmission
- with gears in oil bath
- Clutch
- belt with tensioner
- Steering
- with independent steering clutches and wheel lock

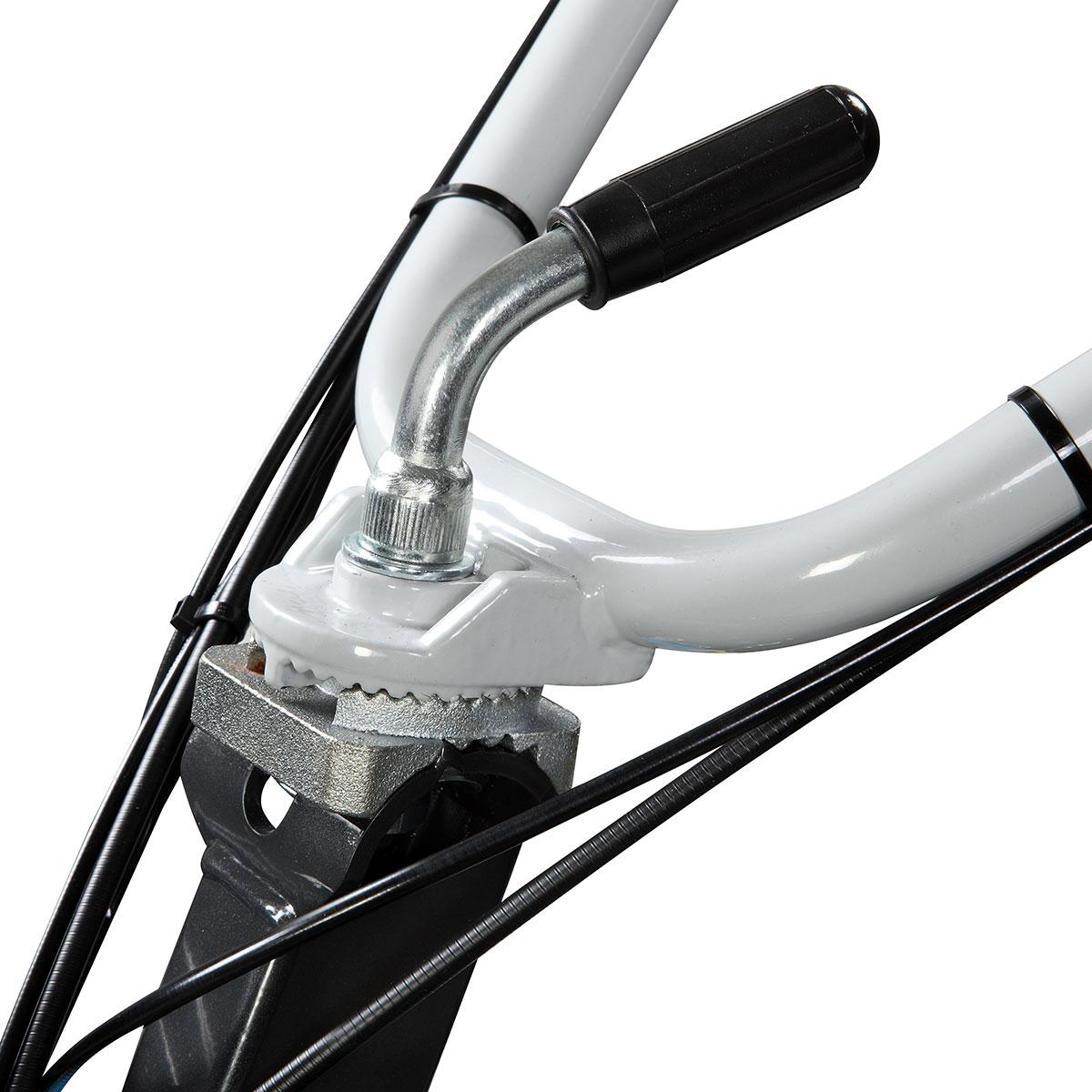

- Handlebars
- adjustable in height and on the sides
- Working width
- 50 cm
- Cutting height
- 20 - 80 mm, crank adjusted

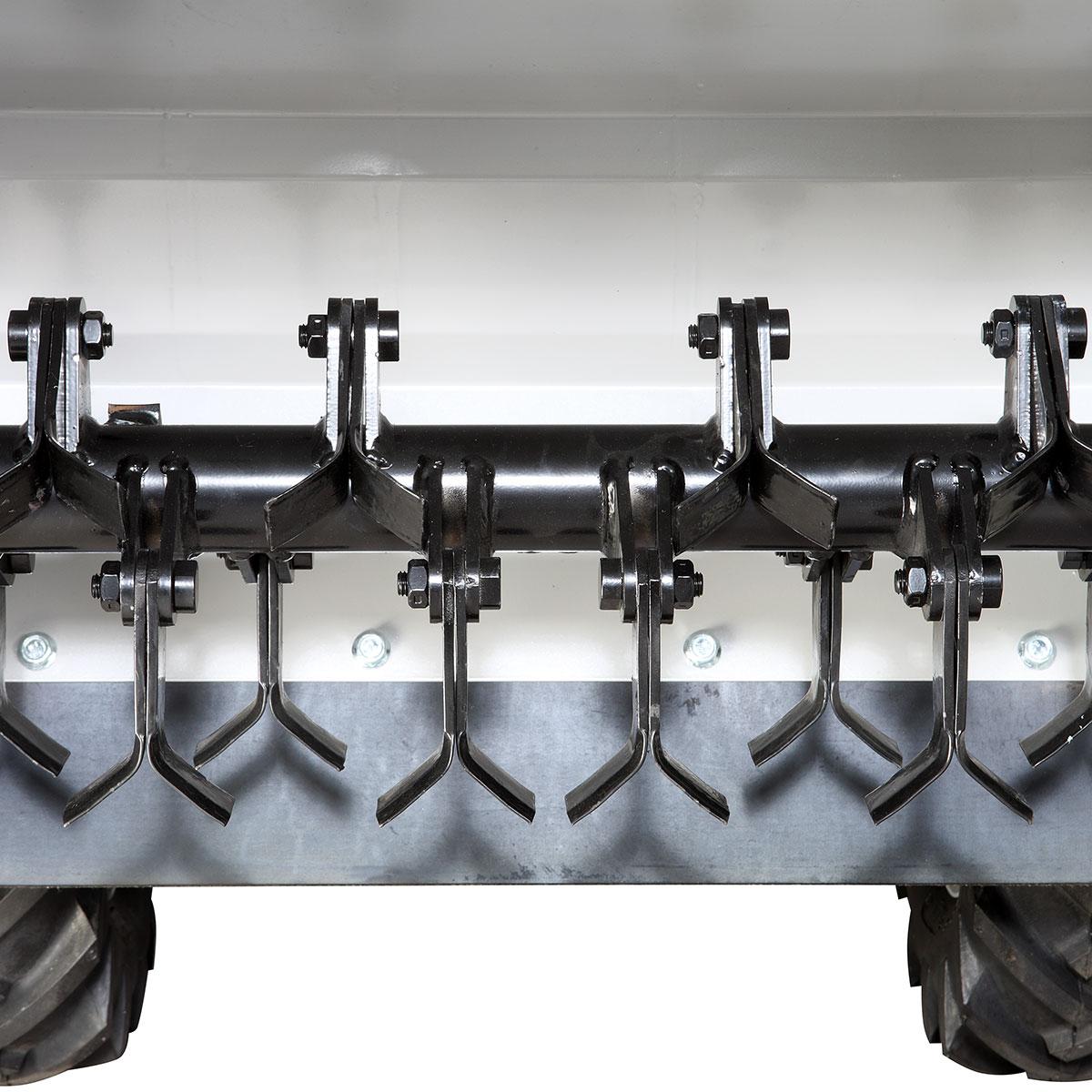

- Cutting unit
- rotor with 26 "Y" shaped knives
- Service brake
- with automatic cut-in
- Front wheels
- swivel with lock

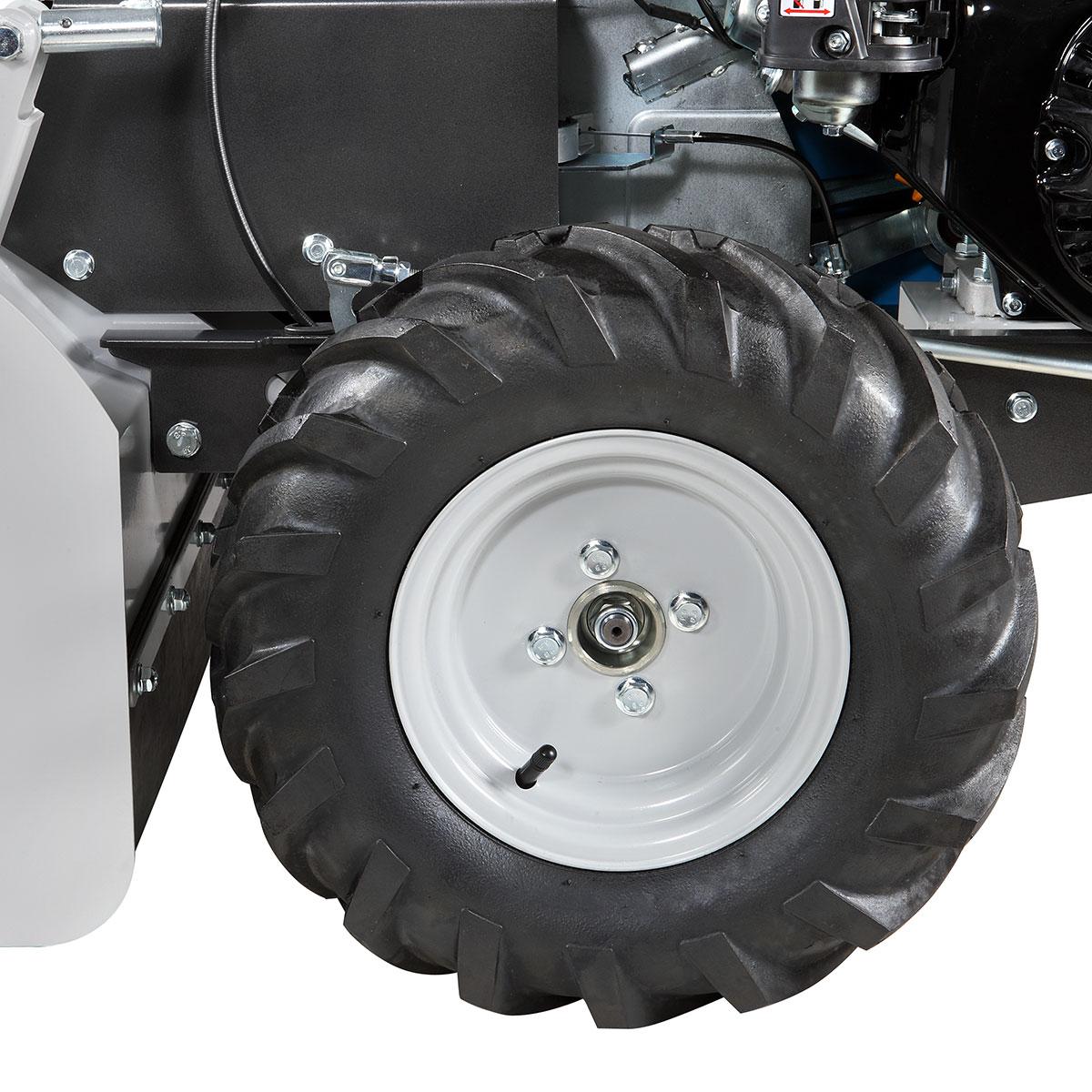

- Rear wheels
- 4.00-8”
- Weight
- 135 kg
Gearbox / Speed (km/h) with wheels:
4-speed (3 forward + 1 reverse) with 4.00-8'' wheels
| 1 | 1.20 |
| 1R | 1.40 |
| 2 | 2.20 |
| 3 | 3.40 |

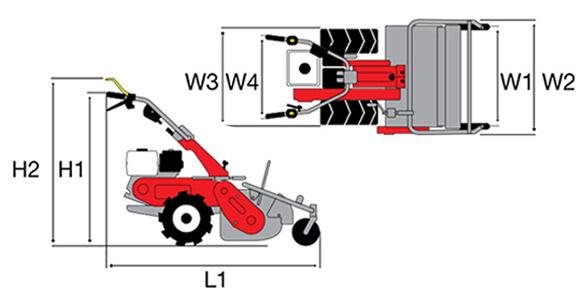

Dimensions (mm)
| L1 | 1550 |
| H1 | 1040 |
| H2 | 1185 |
| W1 | 550 |
| W2 | 670 |
| W3 | 545 |
| W4 | 570 |
