Flail mowers for intensive use

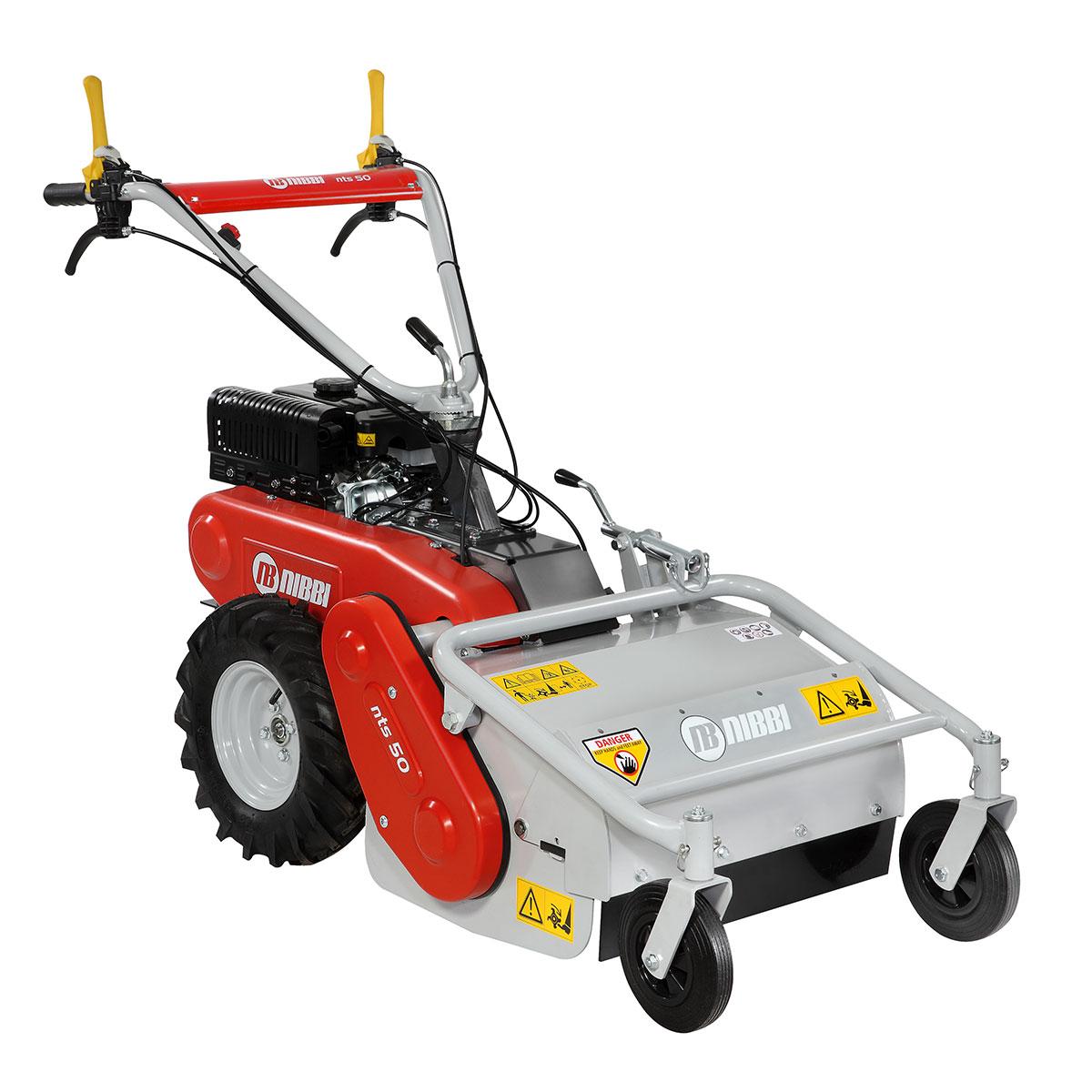

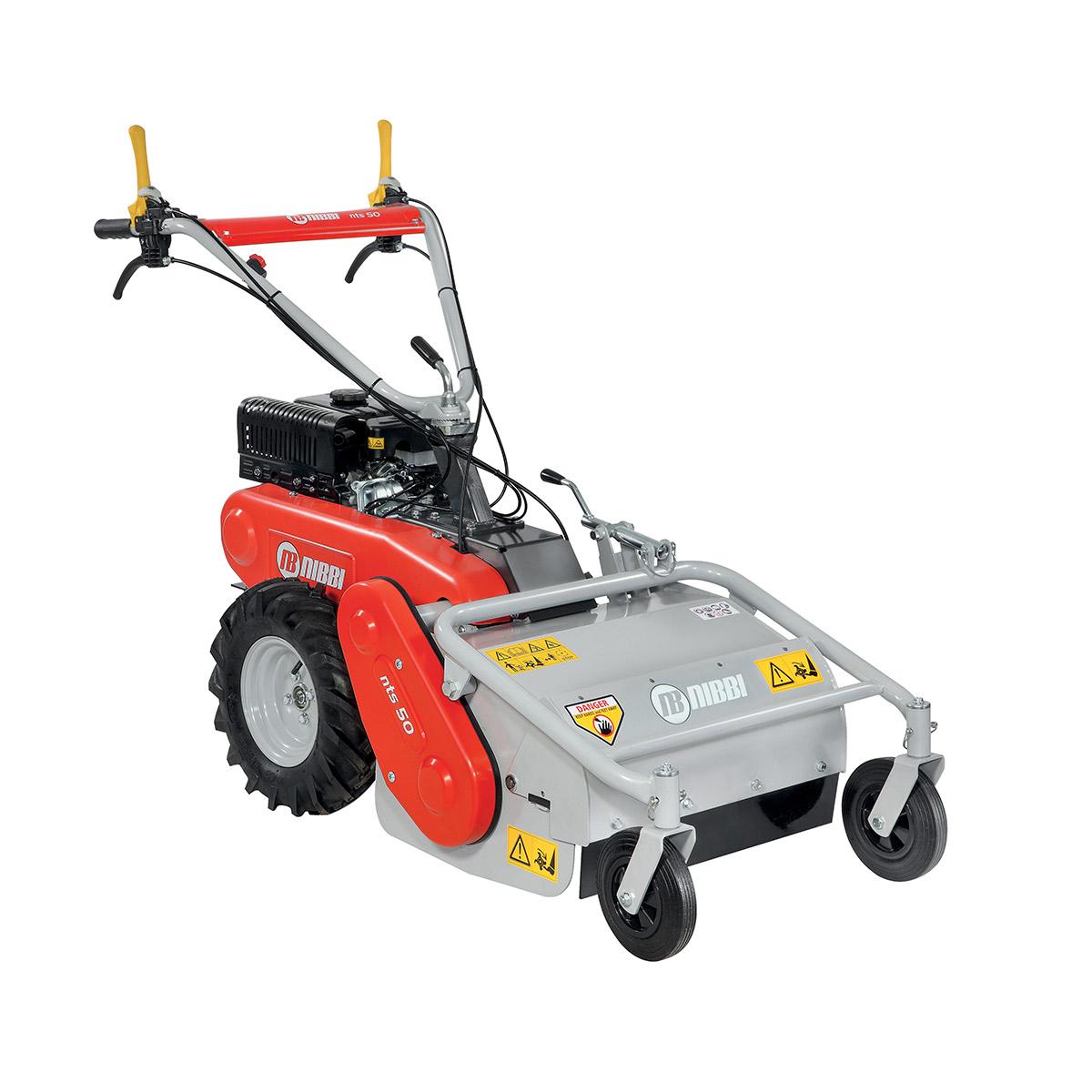

NTS 50

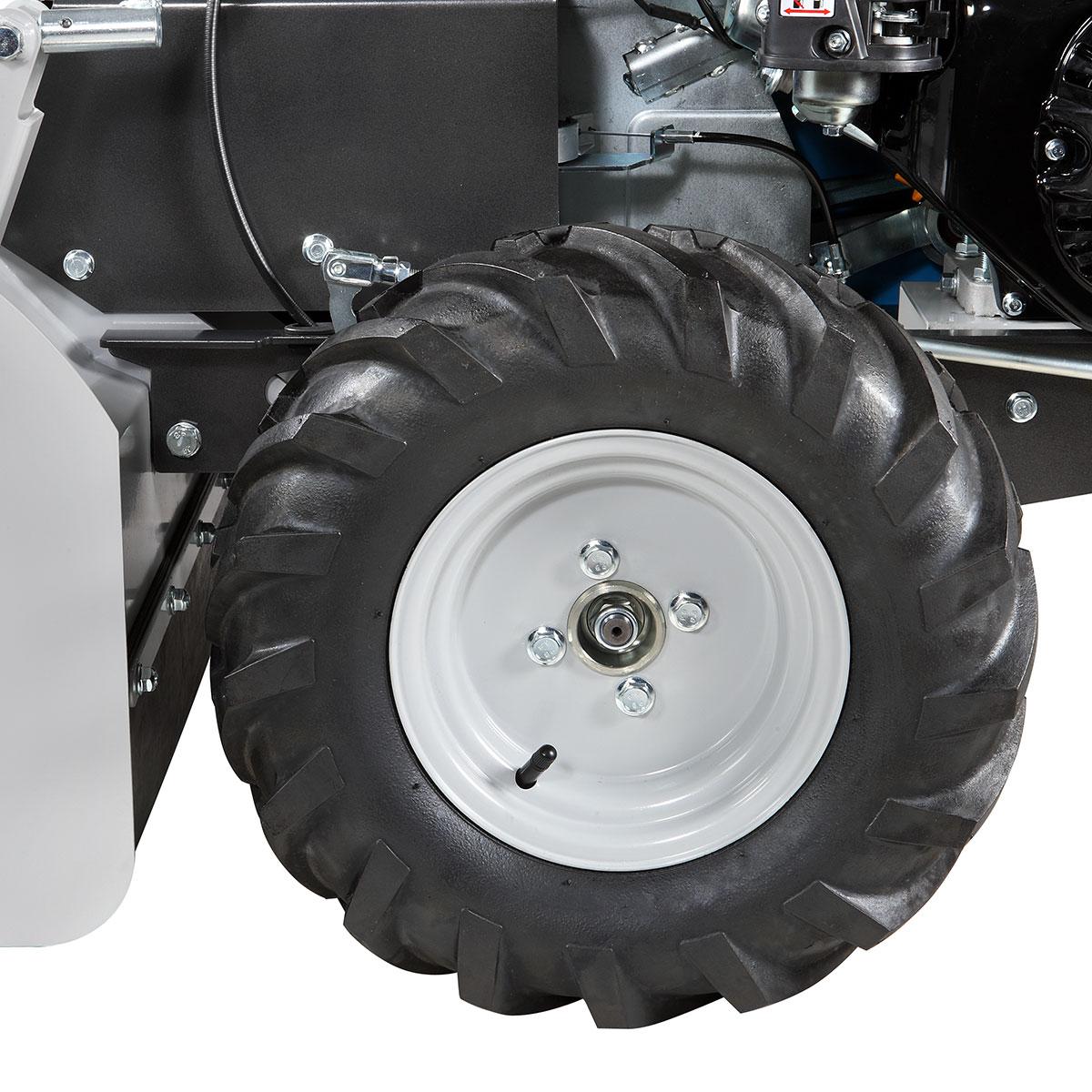

Compact and high-performance model, designed for home gardeners and professional operators. Grass, shoots, low vegetation and scrub are the ideal working environment. The compact dimensions of the rotor unit make this machine highly manoeuvrable in confined spaces and when moving between work areas. No type of terrain is off-limits, thanks to the large tyred wheels. A versatile machine that easily adapts to different types of environments and cuts.
- Gearbox 4-speed (3 forward + 1 reverse)
- Working width 50 cm
- Cutting height 20 - 80 mm, crank adjusted
| Power supply | Engine | Model | Displacement | Power* | Starting | Code |
|---|---|---|---|---|---|---|
| K 800 H | 182 cm³ | 5.7 HP | recoil start | 68259101E5 |
* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.
SHARE
68250153A
- F
- GB
- I
- PL
- E
- D

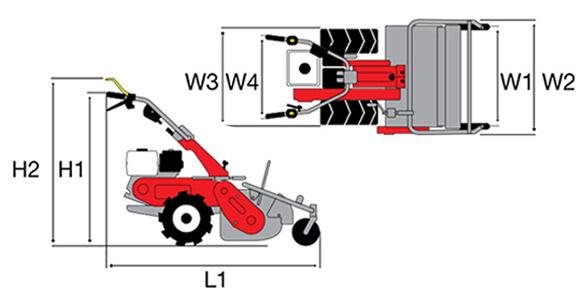

Technical features
| 1 | 1.20 |
| 1R | 1.40 |
| 2 | 2.20 |
| 3 | 3.40 |
| L1 | 1550 |
| H1 | 1040 |
| H2 | 1185 |
| W1 | 550 |
| W2 | 670 |
| W3 | 545 |
| W4 | 570 |
User's and maintenance manuals
BUY THEM TOGETHER
Data and illustrations published are not binding where specifications of materials are concerned, given that these will always be subject to technical improvement. Technical specifications given are subject to change without notice, as also are directions relating to general use of the equipment. Certain items are not available in all countries, or are available only on request.
