Two wheel tractors for private use
CONSUMER
BRIK 1 S
CONSUMER
| Power supply | Engine | Model | Displacement | Power* | Starting | Code |
|---|---|---|---|---|---|---|
| GX 160 OHV | 163 cm³ | 4.8 HP | recoil start | 68319103E5 | ||
| K 800 H OHV | 182 cm³ | 5.7 HP | recoil start | 68319105E5 |
* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

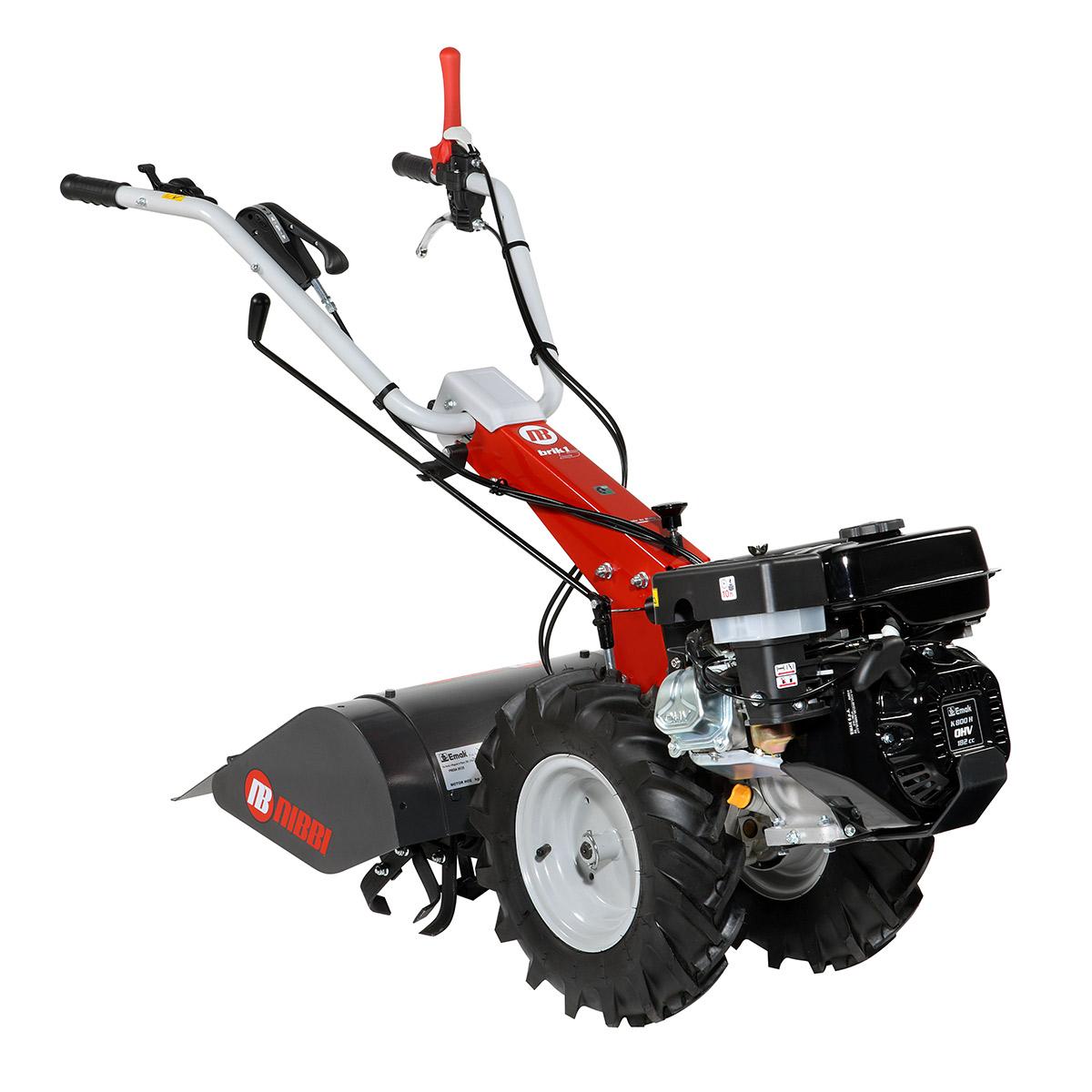

Designed for demanding home gardeners tending an allotment or vegetable plot, this two wheel tractor is extremely functional and offers the optimal combination of ease of use and safety.
- Displacement
- 163 cm³ - 182 cm³
- Gearbox
- 2-speed (1 forward + 1 reverse)
- Transmission
- with gears in oil bath
- Clutch
- dry multidisc

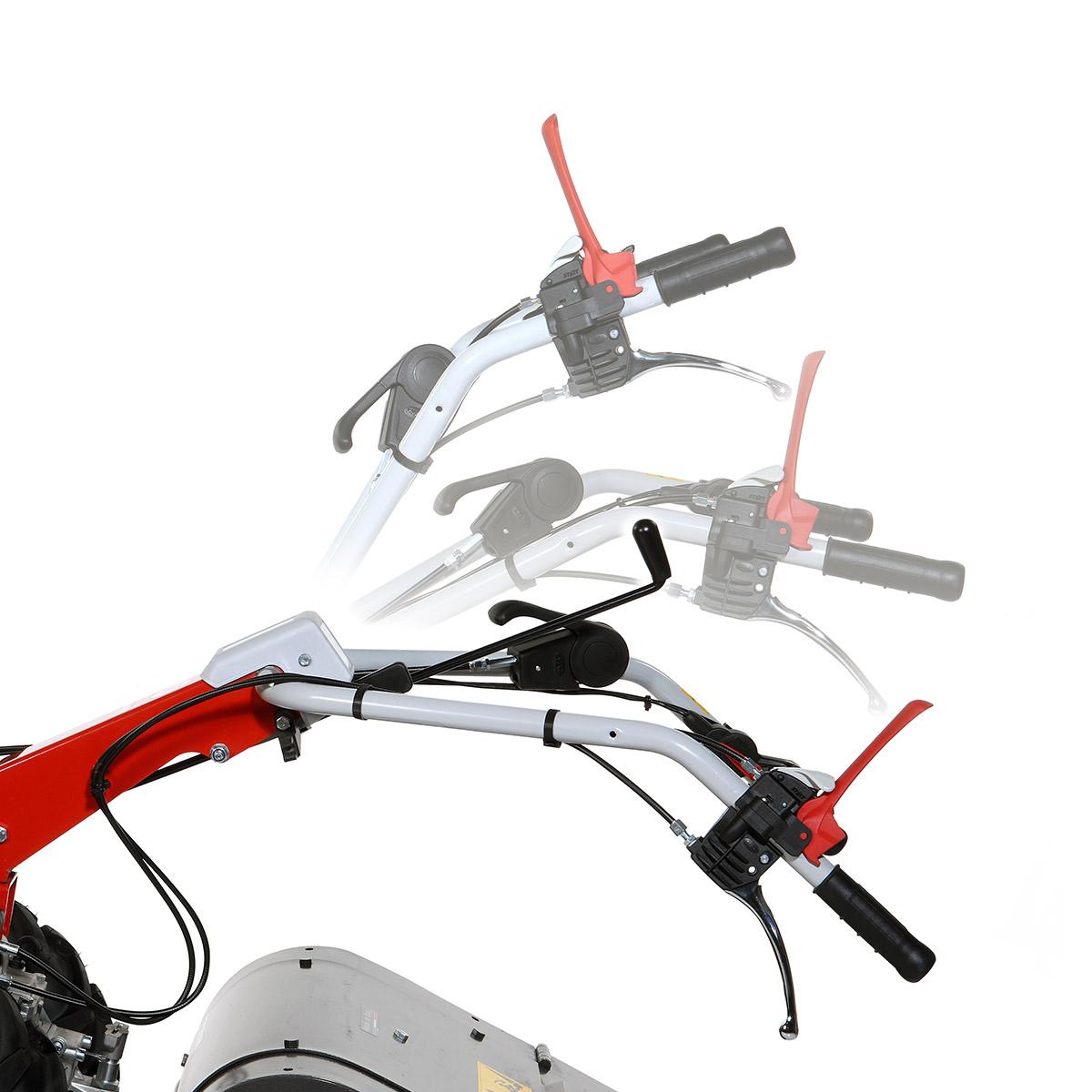

- Handlebars
- height- and width-adjustable, 180° reversible, with vibration-damping device
- Reverse gear
- no
- Differential
- no
- Brakes
- no

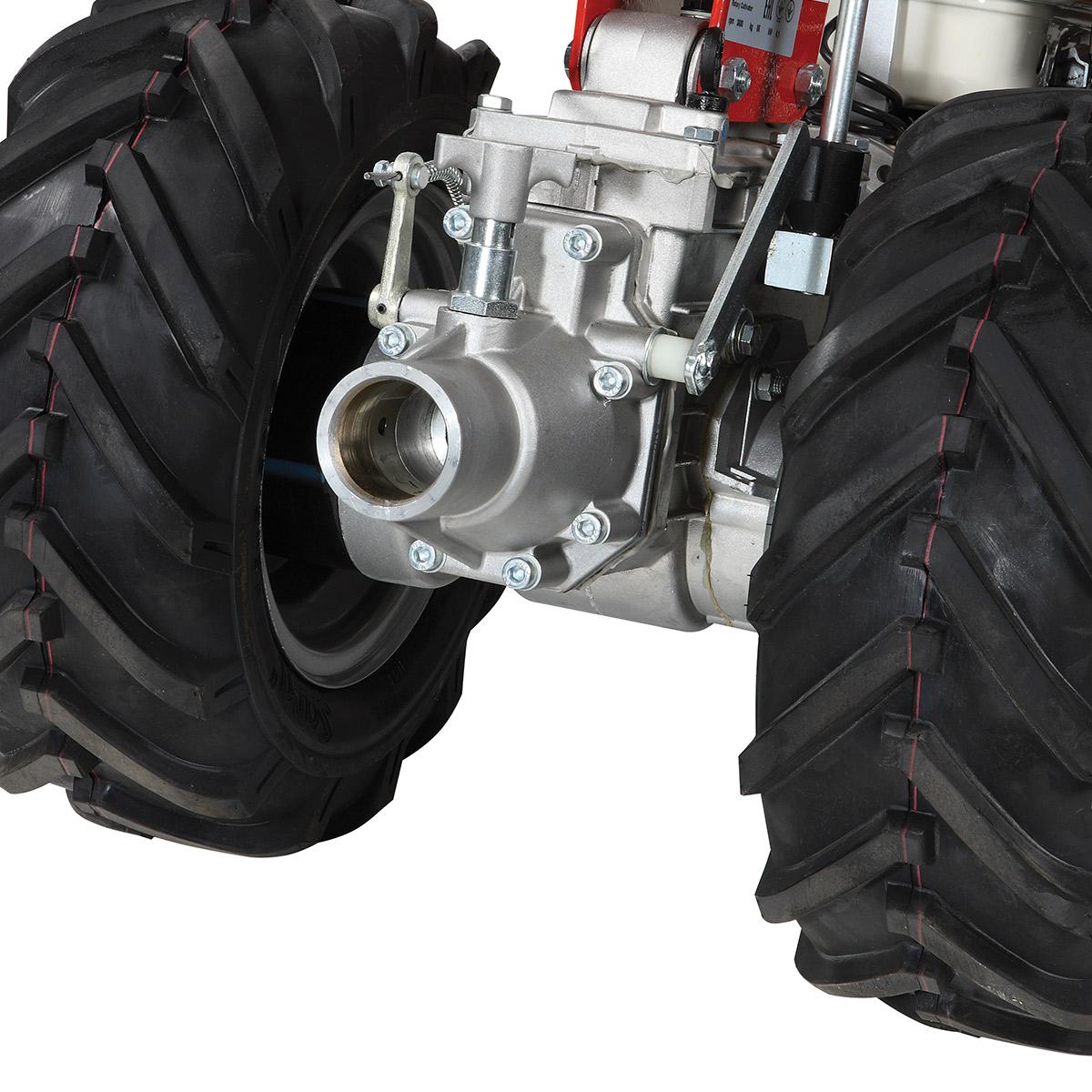

- Power take-off
- independent at 1004 rpm
- Accessories installation
- Integral QuickFit supplied as standard
- Towing hitch
- optional
- Cowling
- no
- Weight (with diesel engine, rotor and wheels)
- 75 kg
WITH TWO WHEEL TRACTOR
Gearbox / Speed (km/h):
2-speed (1 forward + 1 reverse) with 4.00-8'' wheels
| 1 | 1.18 |
| 1R | 3.07 |
Dimensions (mm)
| L1 | 1440 |
| L2 | 470 |
| L3 | 970 |
| H1 | 230-1050 |
| W1 | 380 |
| W2 | 350-600 |
WITH CUTTERBAR MOWER
Gearbox / Speed (km/h):
2-speed (1 forward + 1 reverse) with 4.00-8'' wheels
| 1 | 3.07 |
| 1R | 1.18 |
Dimensions (mm)
| L1 | 1465 |
| L2 | 600 |
| L3 | 865 |
| H1 | 345-1150 |
| W1 | 380 |
| W2 | 900-1117 |
Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
