Cutterbar mowers for intensive use
HOME USER

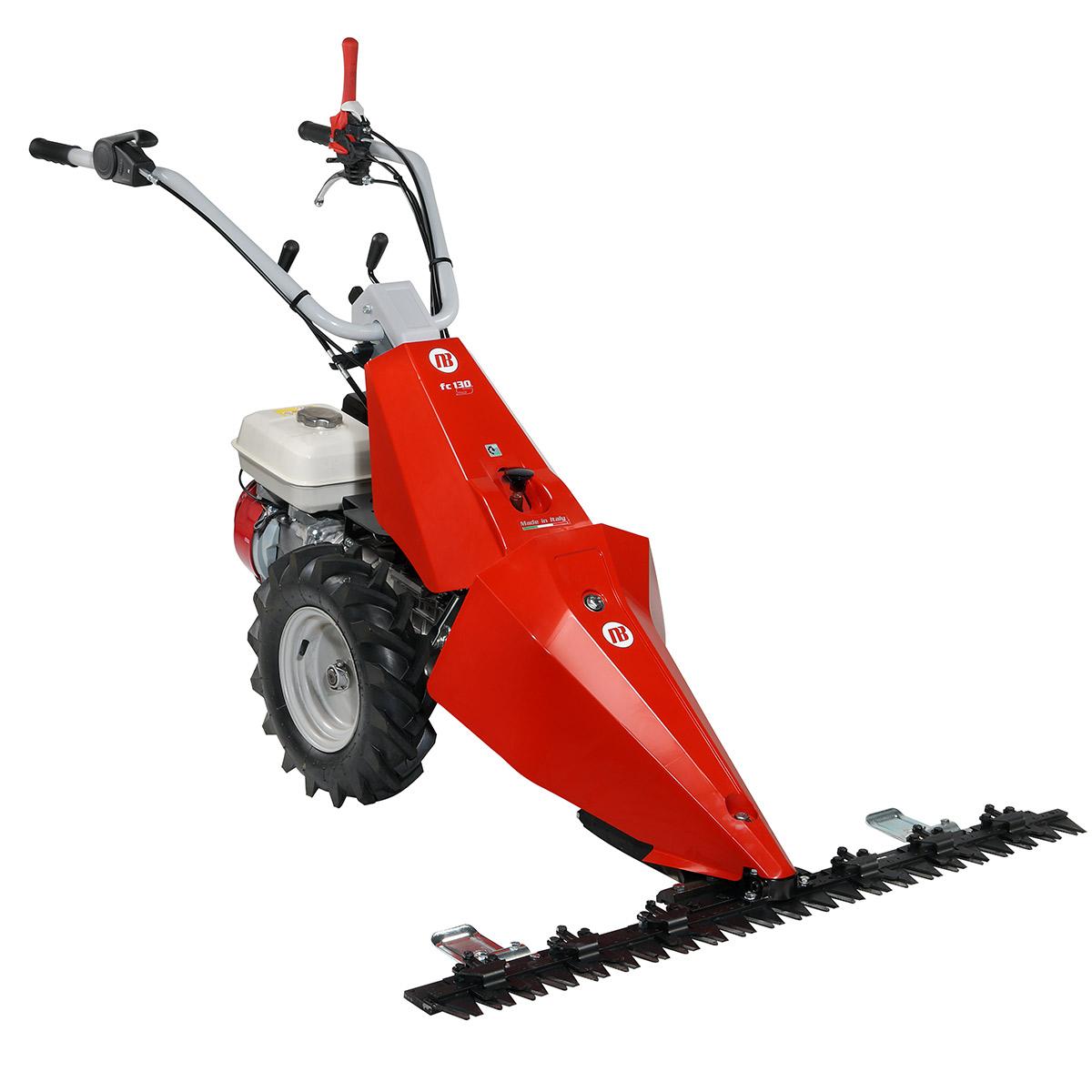

FC 130 S
HOME USER
| Power supply | Engine | Model | Displacement | Power* | Starting | Code |
|---|---|---|---|---|---|---|
| GX 200 OHV | 196 cm³ | 5.8 HP | recoil start | 68949009E5 | ||
| K 800 H OHV | 182 cm³ | 5.7 HP | recoil start | 68949007E5 |
* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.
Designed for small and medium-size plots, this machine very effectively combines professional level reliability and performance with extreme ease of handling, making it ideal for demanding home users and smallholders. The full range of accessories, including rotors, cutterbars, brushes and snowthrowers, are designed to meet the requirements of users seeking a multifunction machine that’s both practical and safe.
- Gearbox
- 4-speed (2 forward + 2 reverse)
- Differential
- no
- Reverse gear
- yes, control lever on handlebar
- Transmission
- with gears in oil bath
- Clutch
- dry multidisc

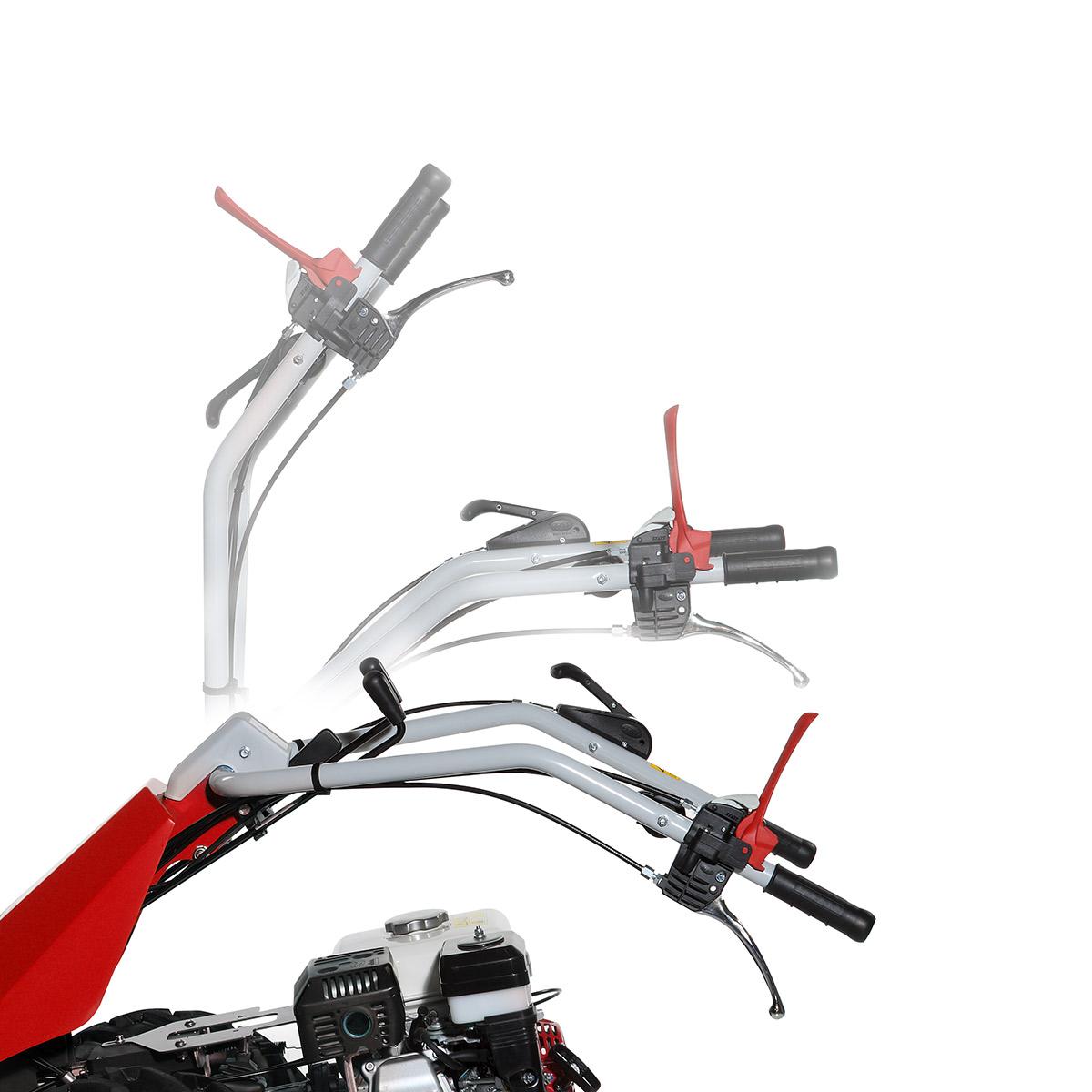

- Handlebars
- height- and width-adjustable with anti-vibration device
- Brakes
- no
- Power take-off
- independent at 973 rpm
- Accessories installation
- Integral QuickFit supplied as standard
- Weight
- 105 kg (with wheels, bar drive and cutter)
Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
