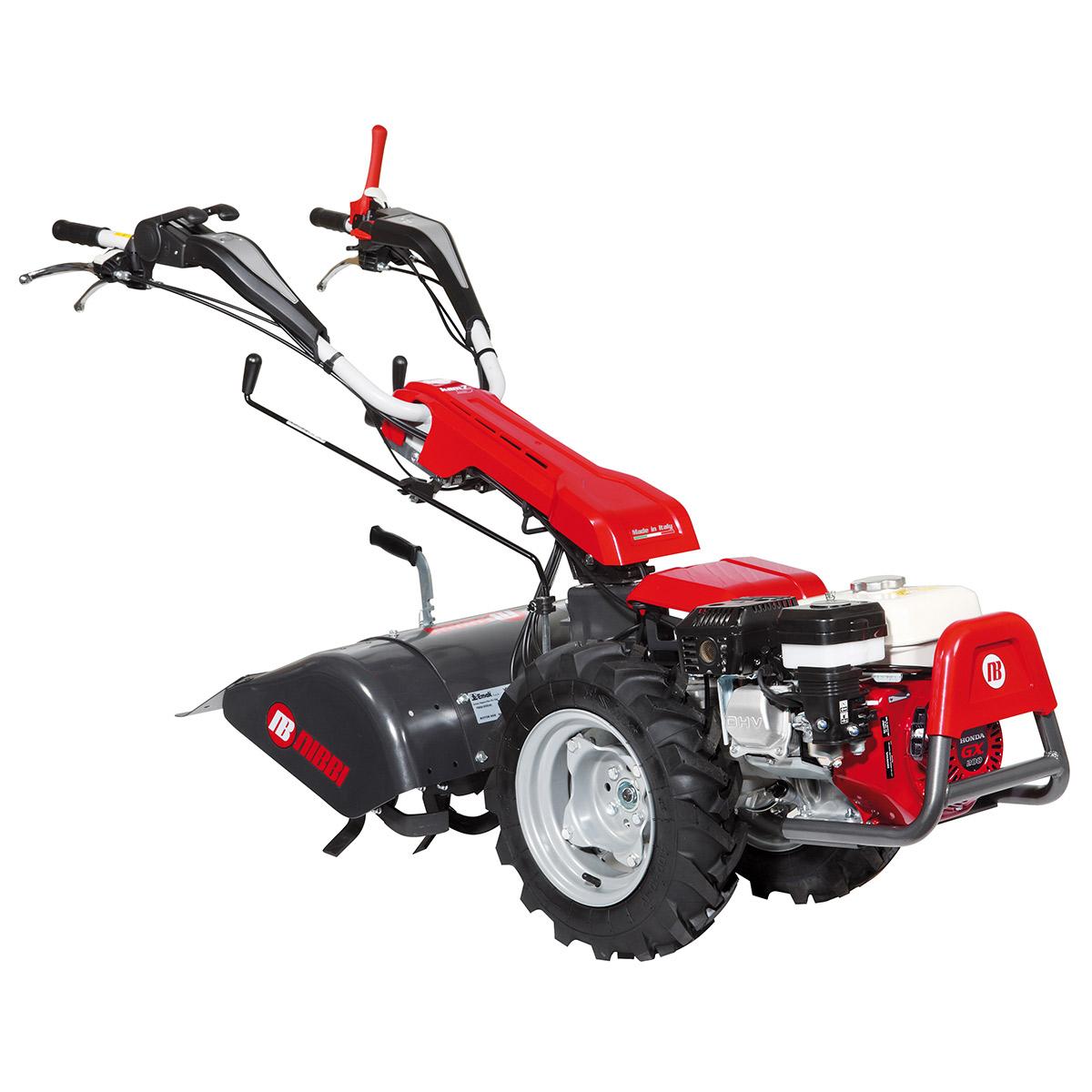

Two wheel tractors for intensive use
KAM 7 S
| Power supply | Engine | Model | Displacement | Power* | Starting | Notes | Code |
|---|---|---|---|---|---|---|---|
| GX 200 OHV | 196 cm³ | 5.8 HP | recoil start | 68359102E5 | |||
| GX 270 OHV | 270 cm³ | 8.4 HP | recoil start | 68359118E5 | |||
| K 800 H OHV | 182 cm³ | 5.7 HP | recoil start | 68359106E5 | |||
| K 900 H OHV | 252 cm³ | 7.0 HP | recoil start | 68359120E5 | |||
| CH 270 OHV | 208 cm³ | 7.0 HP | recoil start | 68359107E5 | |||
| K 7000 HD | 349 cm³ | 6.7 HP | recoil start | 68359115E5A | |||
| K 7000 HD | 349 cm³ | 6.7 HP | recoil start/electric | battery supplied as standard | 68359124E5 |
* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.
Thanks to the differential with locking lever on the handlebars, which affords perfect manoeuvrability and grip even on the most difficult terrain and on slopes, the key strength of this machine is its ease of use. The facility to use a range of different accessories for tillage, grass cutting and maintenance of gardens or urban spaces makes these machines exceptionally versatile and perfectly adapted to meet the needs of demanding home users and smallholders.
- Displacement
- 196 cm³ - 270 cm³ - 252 cm³ - 349 cm³
- Gearbox
- 4-speed (2 forward + 2 reverse)
- Transmission
- with gears in oil bath
- Clutch
- dry multidisc

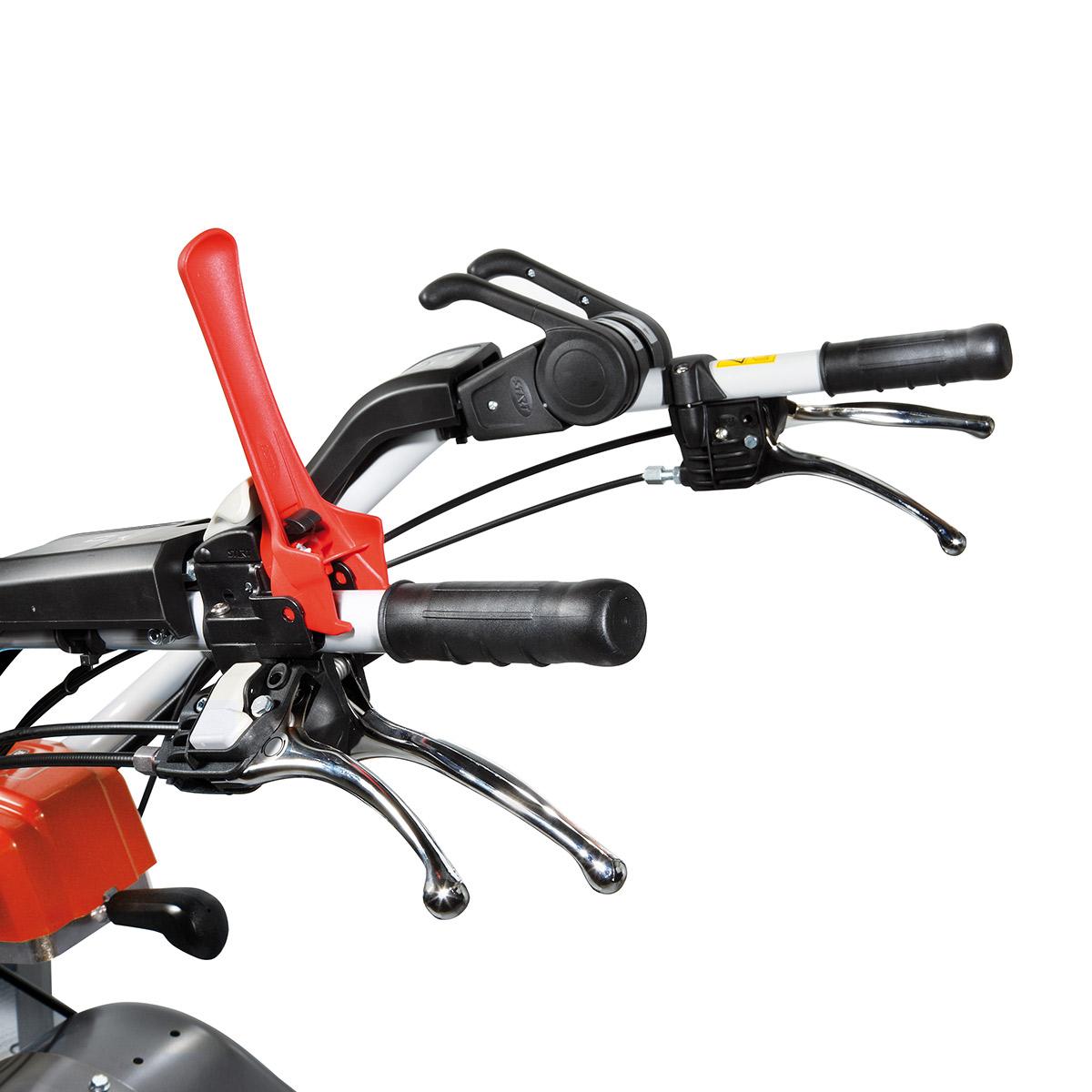

- Handlebars
- height- and width-adjustable, 180° reversible, with vibration-damping device
- Reverse gear
- yes, with handlebar lever
- Differential
- yes
- Brakes
- yes
- Power take-off
- independent at 973 rpm
- Accessories installation
- QuickFit (optional)
- Towing hitch
- yes
- Cowling
- no
- Weight (with diesel engine, rotor and wheels)
- 120 kg
WITH TWO WHEEL TRACTOR
Gearbox / Speed (km/h):
4-speed (2 forward + 2 reverse) with 4.00-10'' wheels
| 1 | 1.20 |
| 1R | 1.27 |
| 2 | 2.52 |
| 2R | 2.66 |
Dimensions (mm)
| L1 | 1780 |
| L2 | 570 |
| L3 | 1210 |
| H1 | 1340-470 |
| W1 | 370 |
| W2 | 700-400 |
WITH CUTTERBAR MOWER
Gearbox / Speed (km/h):
4-speed (2 forward + 2 reverse) with 4.00-10'' wheels
| 1 | 1.27 |
| 1R | 1.20 |
| 2 | 2.66 |
| 2R | 2.52 |
Dimensions (mm)
| L1 | 1690 |
| L2 | 900 |
| L3 | 790 |
| H1 | 1440-620 |
| W1 | 370 |
| W2 | 1420-950 |
