Transporters for intensive use
INTENSIVE

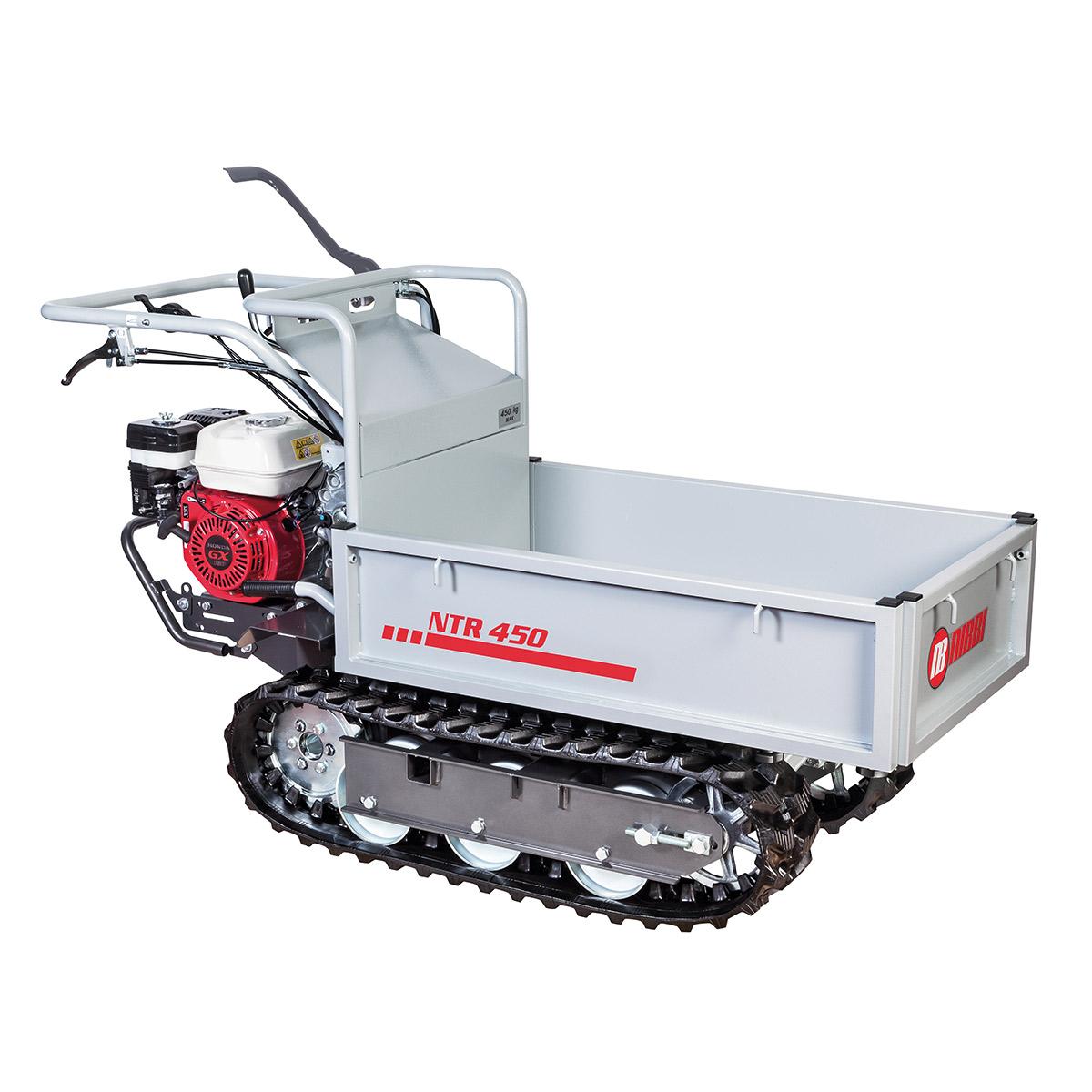

NTR 450
INTENSIVE
| Power supply | Engine | Model | Displacement | Power* | Starting | Code |
|---|---|---|---|---|---|---|
| GX 160 OHV | 163 cm³ | 4.8 HP | recoil start | 68729115E5 | ||
| K 655 OHV | 166 cm³ | 3.9 HP | recoil start | 68719045E5 |
* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.
Designed to meet the needs of demanding users, this model stands out for its manoeuvrability, ruggedness, and generous load capacity. It is also equipped with a power take-off to drive accessories.
- Gearbox
- 4-speed (3 forward + 1 reverse)
- Transmission
- with gears in oil bath

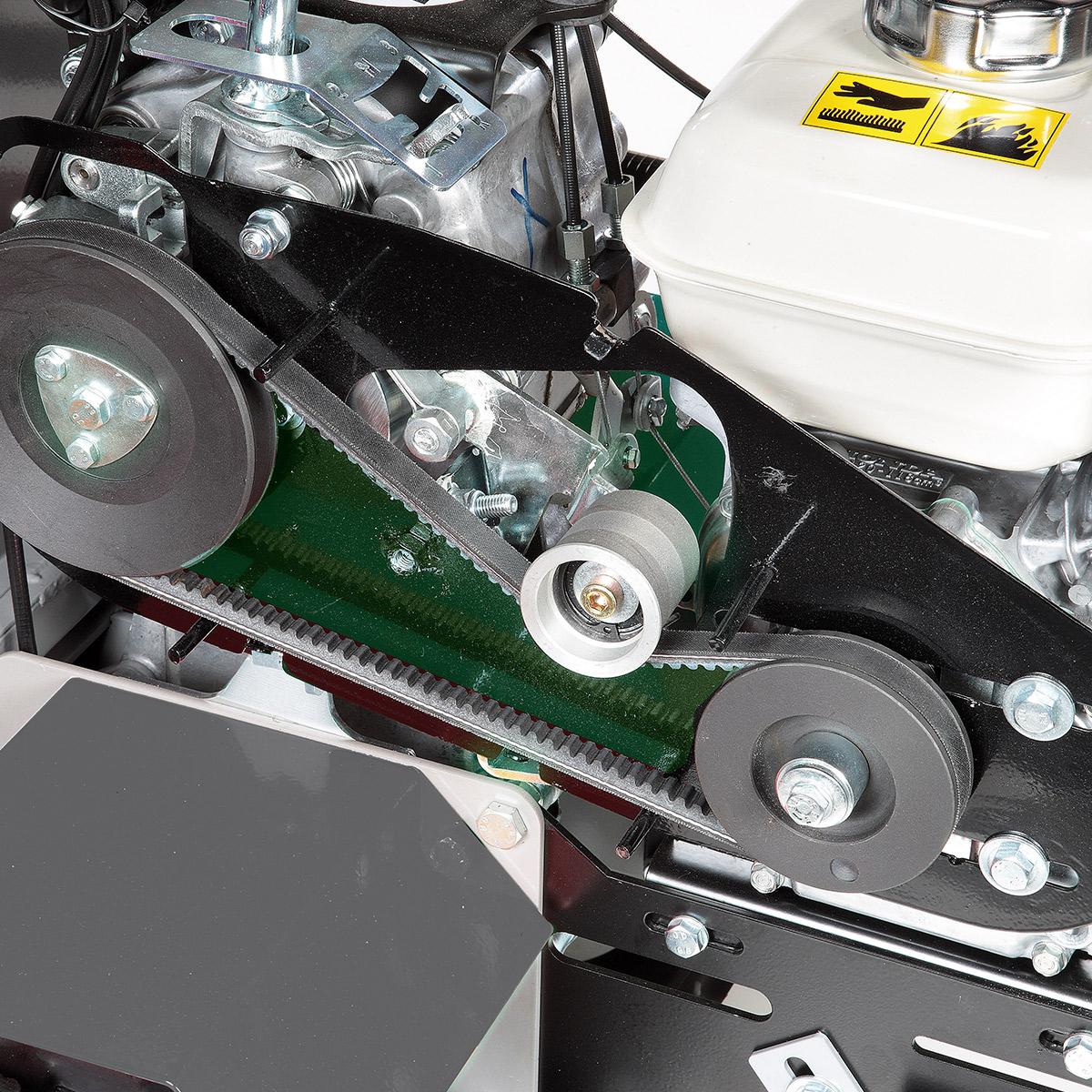

- Clutch
- belt, with automatic disengagement when the control lever is released
- Brakes
- with expansion and automatic cut-in when the clutch is released
- Load capacity
- 450 Kg
- Loading surface
- telescoping
- Dumping
- manual
- Dump angle
- 50°

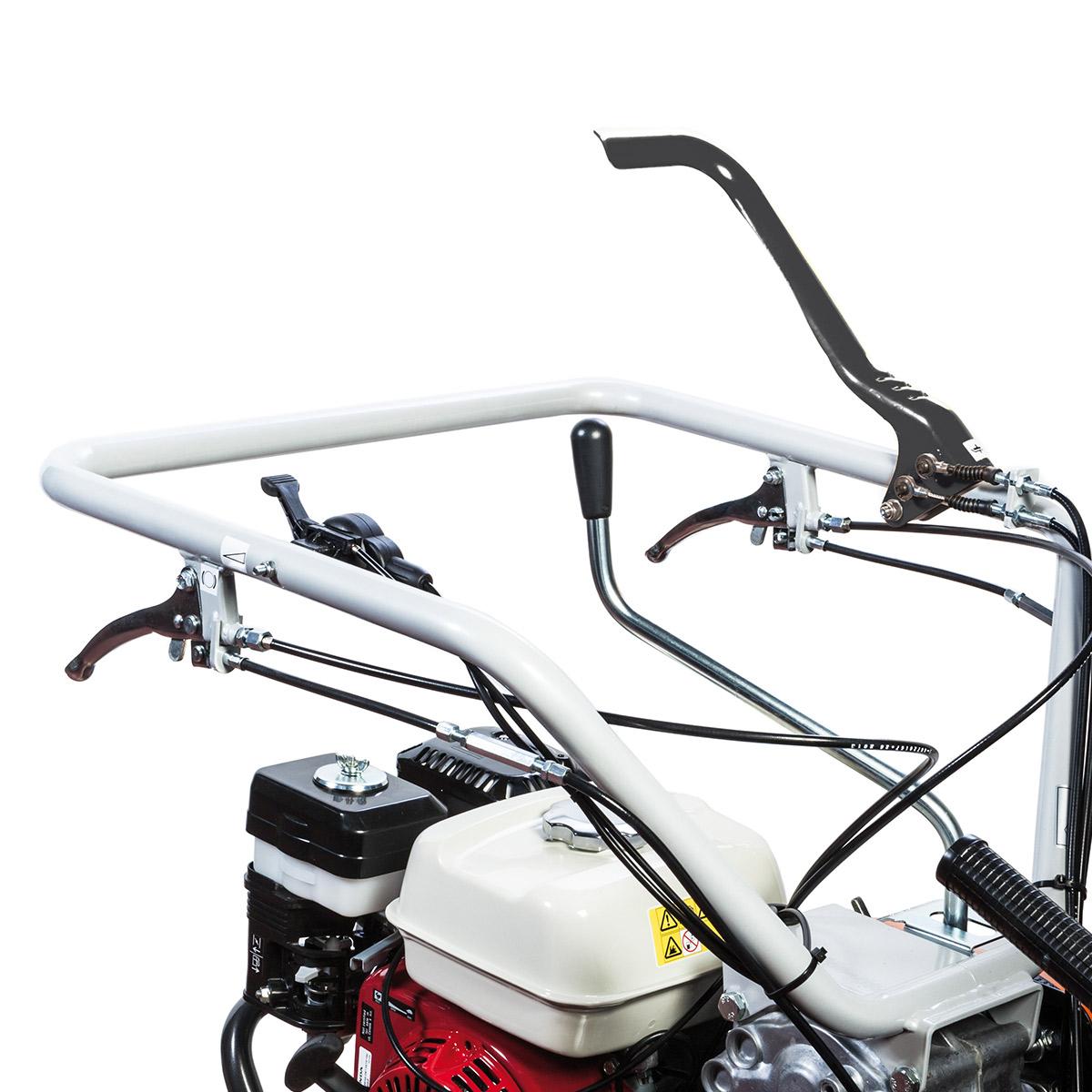

- Steering
- with independently controlled releases and brakes
- Minimum steering radius
- 700 mm

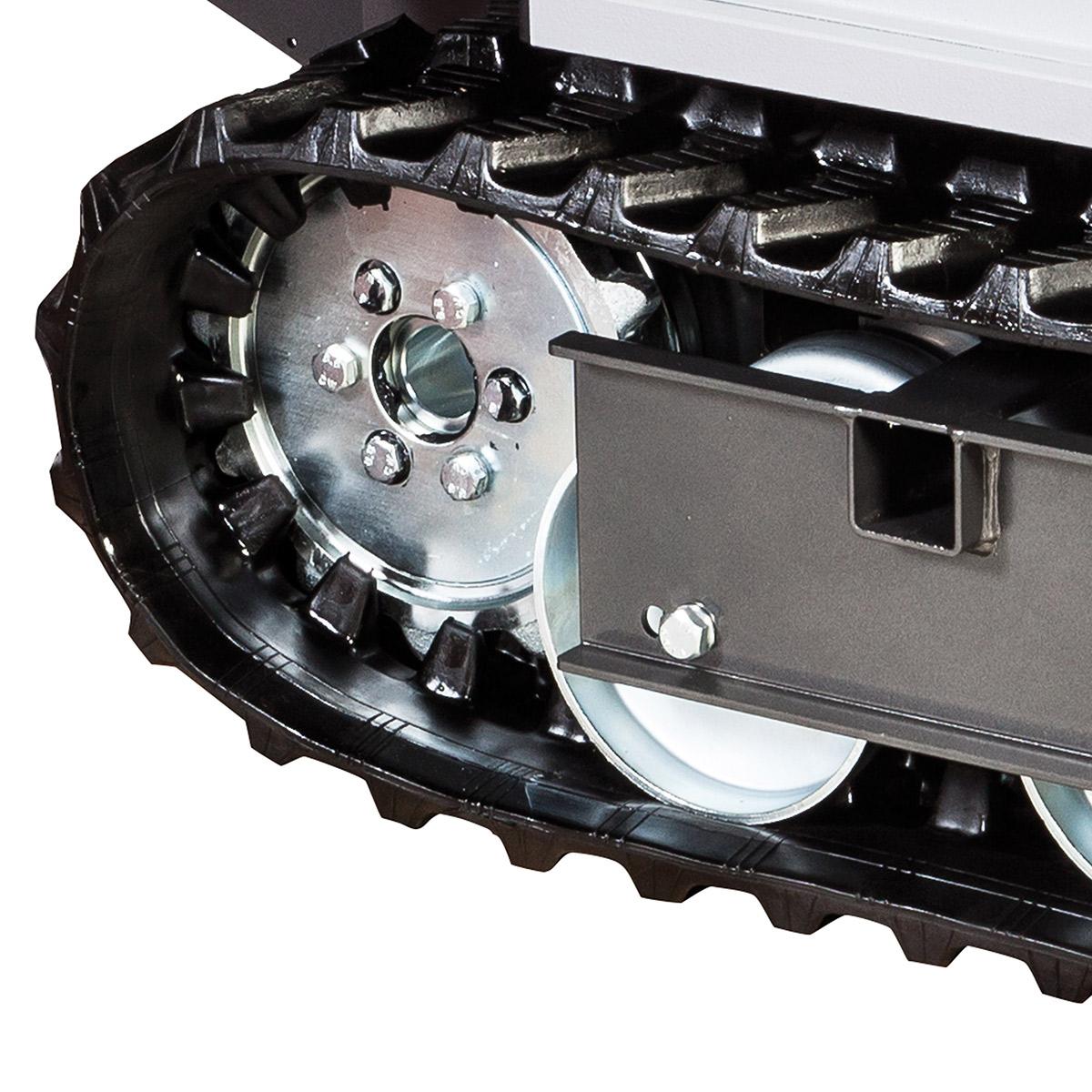

- Crawler contact surface
- 60 cm length - 18 cm width
- Power take-off
- independent at 2100 rpm
- Weight
- 180 kg
Gearbox / Speed (km/h):
| 1 | 1.88 |
| 1R | 1.86 |
| 2 | 4.13 |
| 3 | 7.00 |
Dimensions (mm)
| L1 | 1670 |
| L2 | 925-1060 |
| H1 | 1020 |
| H2 | 900 |
| H3 | 590 |
| H4 | 240 |
| H5 | 339 |
| H6 | 70 |
| W1 | 620 |
| W2 | 643 |
| W3 | - |
| W4 | 560-940 |
| P1 | 785 |
| P2 | 330 |
Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
