Professional flail mowers

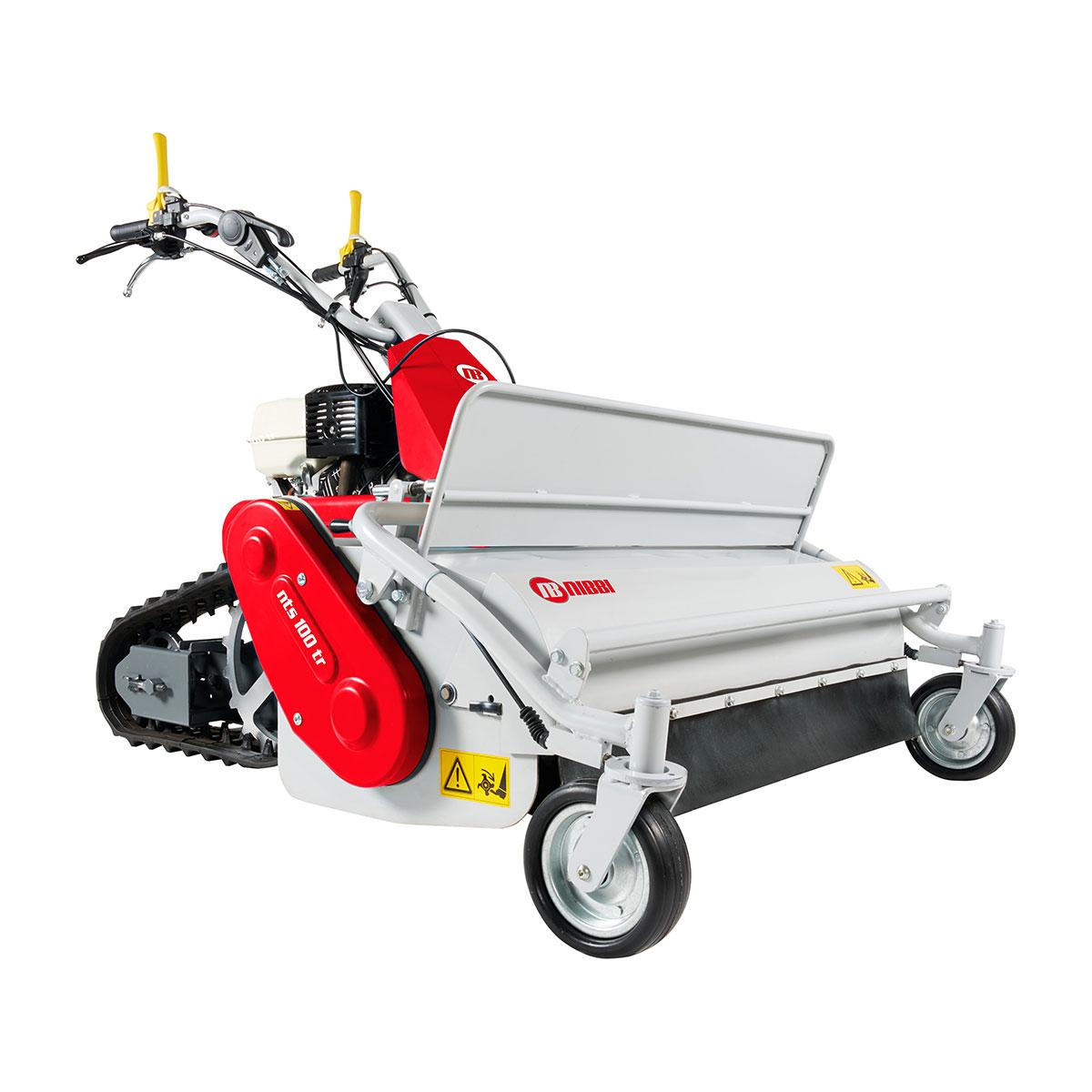

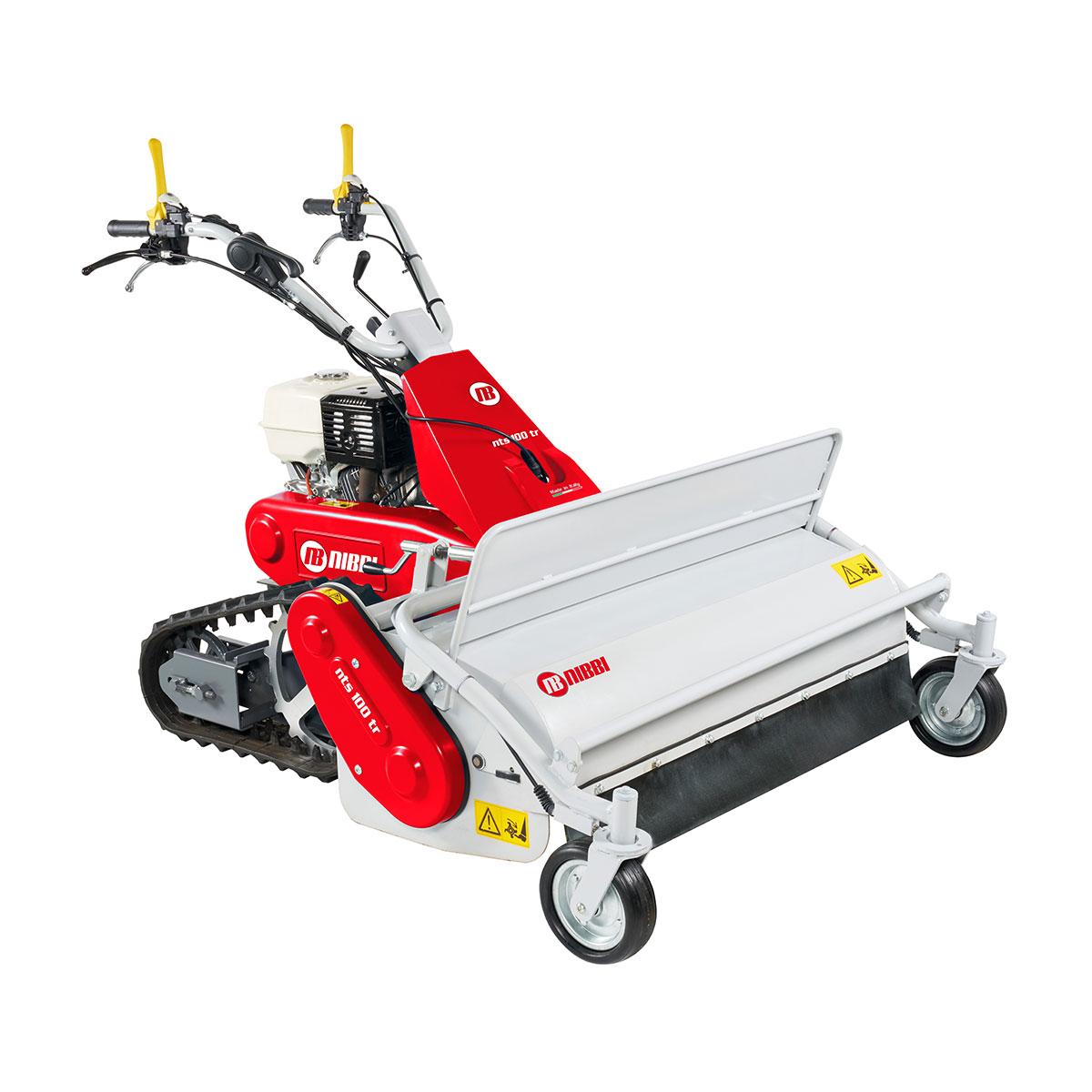

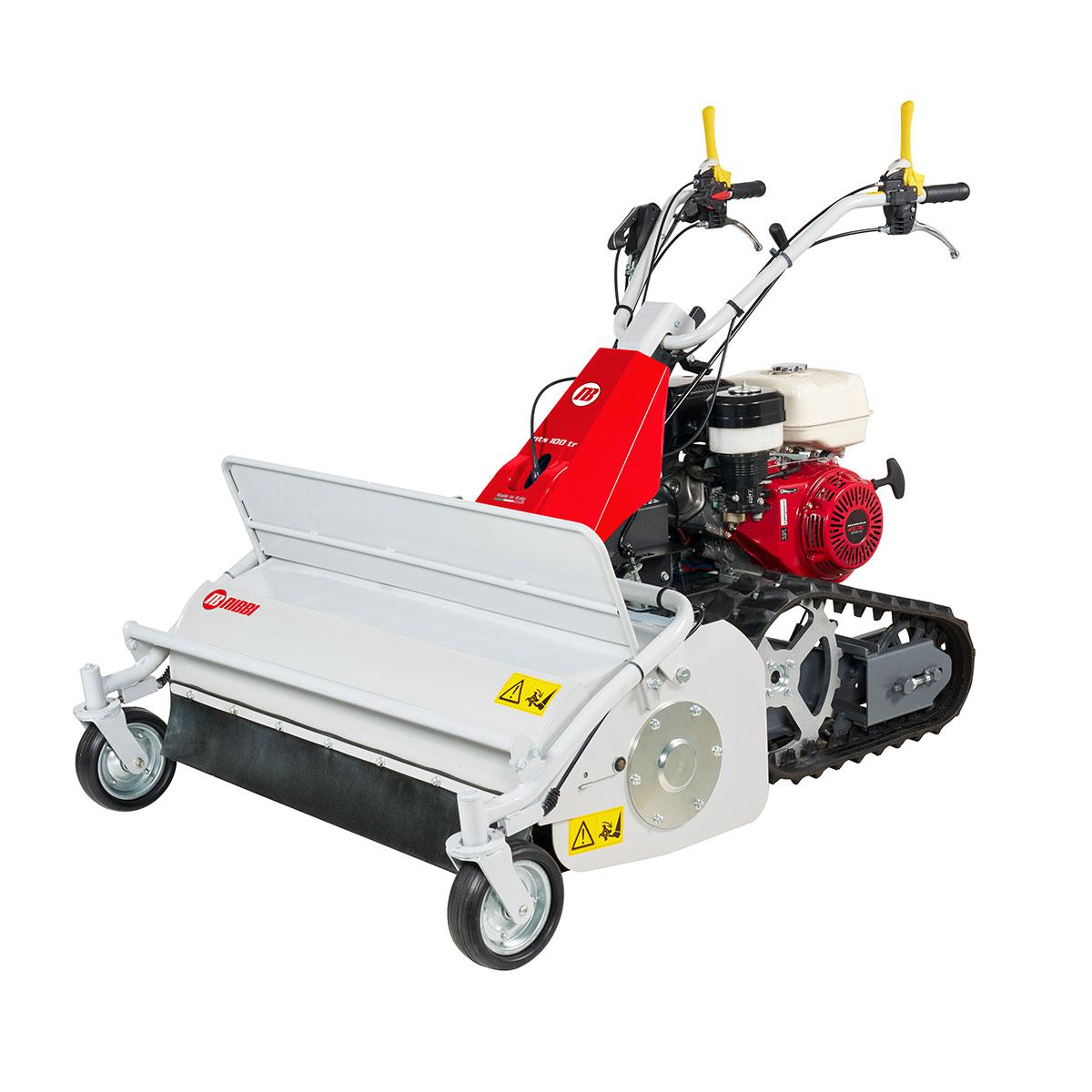

NTS 100 TR
| Power supply | Engine | Model | Displacement | Power* | Starting | Code |
|---|---|---|---|---|---|---|
| GX 390 OHV ALPIN | 389 cm³ | 11.7 HP | recoil start | 68279008E5 | ||
| CH 440 OHV | 429 cm³ | 14.0 HP | recoil start | 68279009E5 |
* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.
The largest shredding capacity, combined with the most high-performance propulsion system. Powerful engines, for quick completion of any job in rural, wooded and inaccessible areas. The NTS 100 TR flail mower offers manouvrability and ease of use thanks to its ergonomically positioned control levers. The propulsion system with oscillating tracks adapts perfectly to various types of terrain, guaranteeing the best possible grip.
- Gearbox
- 4-speed (3 forward + 1 reverse)
- Transmission
- with gears in oil bath
- Clutch
- belt with tensioner
- Steering
- with independent steering clutches and wheel lock
- Handlebars
- with vertical and horizontal adjustment
- Working width
- 100 cm
- Cutting height
- 20 - 80 mm, crank adjusted
- Cutting unit
- rotor with 58 "Y" shaped knives
- Service brake
- with automatic cut-in
- Front wheels
- swivel with lock/unlock via a lever on the handlebars

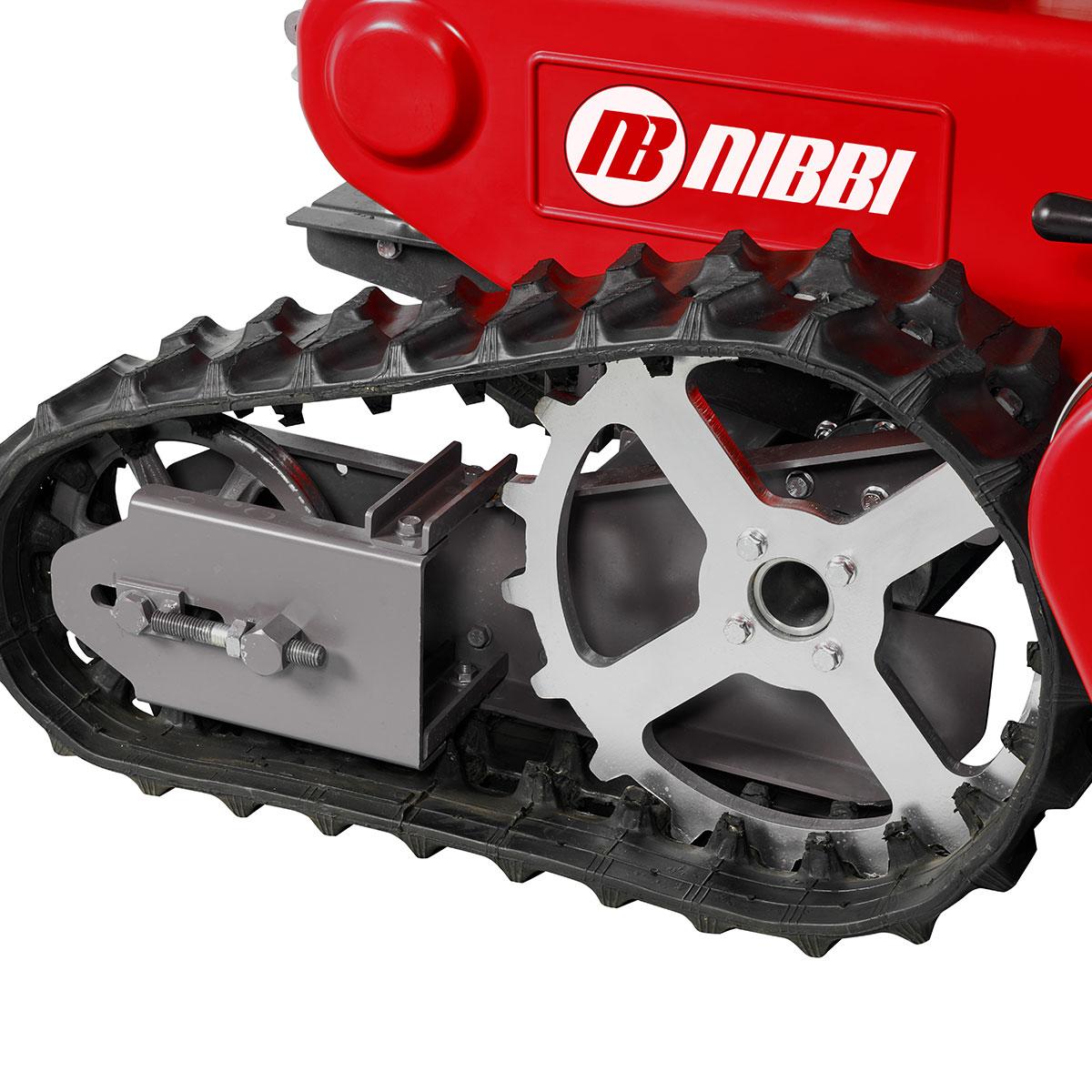

- Rear wheels
- tracks drive system
- Weight
- 245 kg

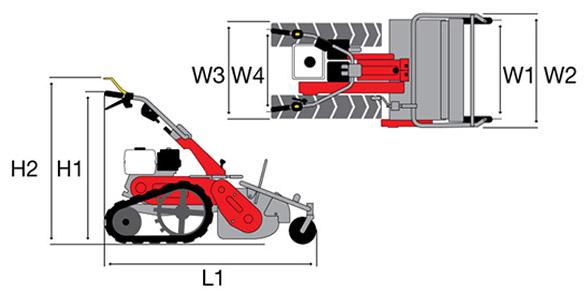

Dimensions (mm)
| L1 | 1500 |
| H1 | 1200 |
| H2 | 1380 |
| W1 | 1140 |
| W2 | 1240 |
| W3 | 900 |
| W4 | 500 |
Gearbox / Speed (km/h) with wheels:
4-speed (3 forward + 1 reverse) with tracks
| 1 | 1.40 |
| 1R | 1.60 |
| 2 | 2.50 |
| 3 | 3.90 |
