Cutterbar mowers for intensive use

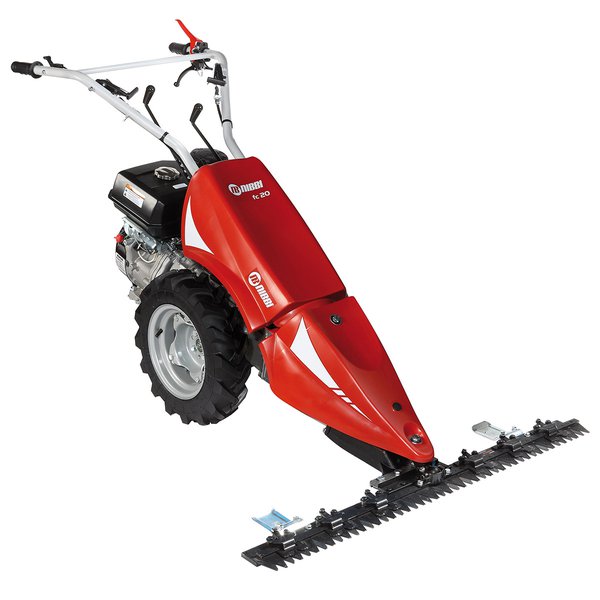

FC 20

Configured for a centrally mounted cutterbar, this lightweight and easy-to-handle machine was designed to satisfy the needs of semi-professional users. It is used mainly for cutting grass and forage crops and for field cleaning. Details including the height-adjustable handlebars, rapid forward/reverse shuttle, Quickfit system and optional oil-bath transmission all demonstrate the close attention paid to operator comfort and safety.

  • Gearbox 7-speed (4 forward + 3 reverse)
  • Differential no
  • Fwd/Rev shuttle yes, control lever on handlebar
Read all the features
Power supply Engine Model Displacement Power* Starting Code
GX 270 OHV 270 cm³ 8.4 HP recoil start 68919064
CH 395 OHV 277 cm³ 9.5 HP recoil start 68919070A


* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

Rivenditore online
Punto vendita
Centro assistenza
Rivenditore online e punto vendita
Punto Vendita e assistenza
Rivenditore online e assistenza
Rivenditore online, punto vendita e assistenza

Technical features

Gearbox
7-speed (4 forward + 3 reverse)
Differential
no
Fwd/Rev shuttle
yes, control lever on handlebar
Transmission
with gears in oil bath
Clutch
dry multidisc
Handlebars
height-adjustable with anti-vibration device
Brakes
no
Power take-off
independent at 973 rpm
Accessories coupling
Integral QuickFit supplied as standard
Weight
115 kg (with wheels, bar drive and cutter)
ToughTech
WITH CUTTERBAR MOWER
Gearbox / Speed (km/h) with wheels:
7-speed (4 forward + 3 reverse) with 4.00-10'' wheels
11.05
1R1.11
22.20
2R2.32
33.63
3R3.83
411.38
Dimensions (mm)
Dimensions (mm)
L11660 (1665)
L2900 (950)
L3760
H11250-400
W1950-1450
W2437

Data and illustrations published are not binding where specifications of materials are concerned, given that these will always be subject to technical improvement. Technical specifications given are subject to change without notice, as also are directions relating to general use of the equipment. Certain items are not available in all countries, or are available only on request.
